FEATURES:

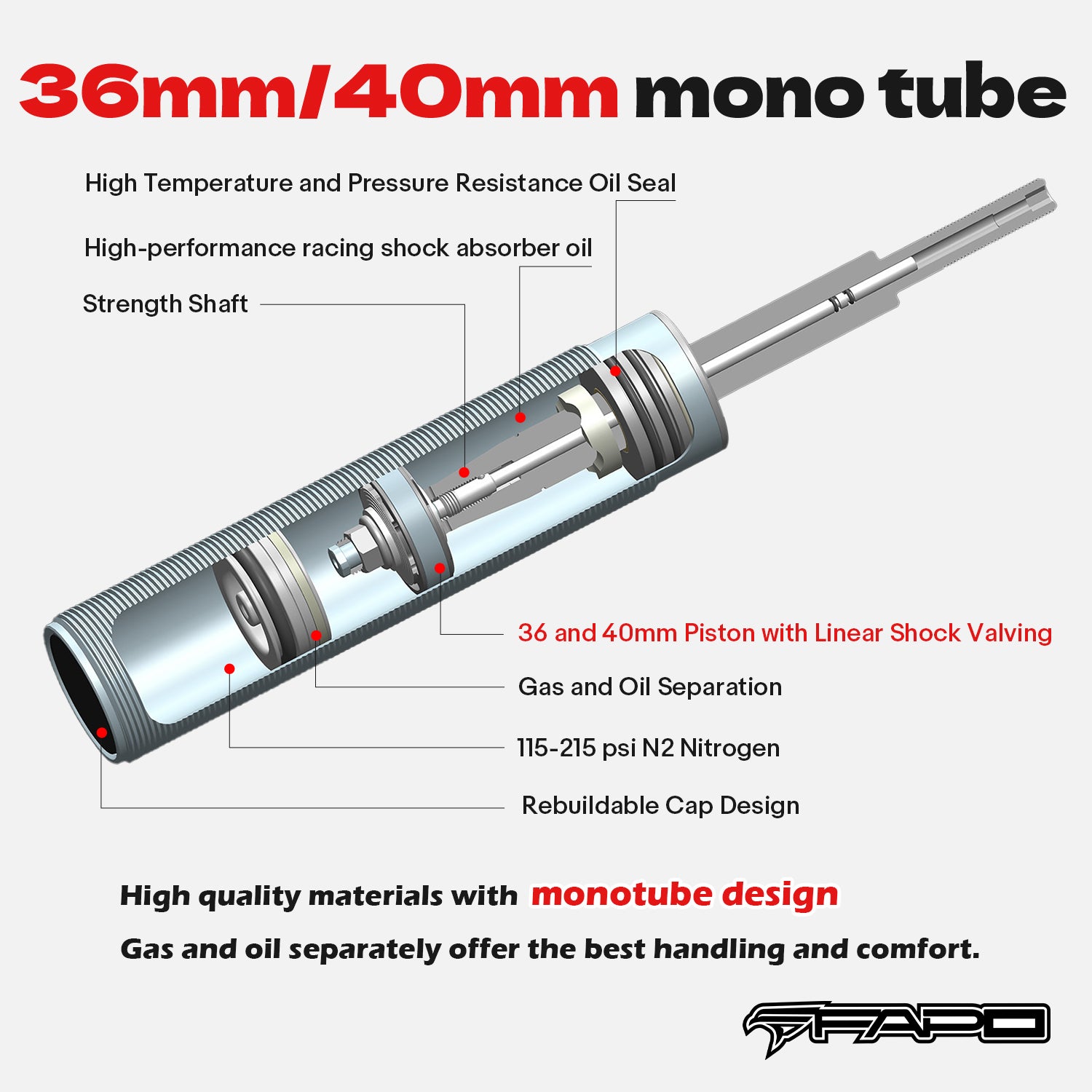

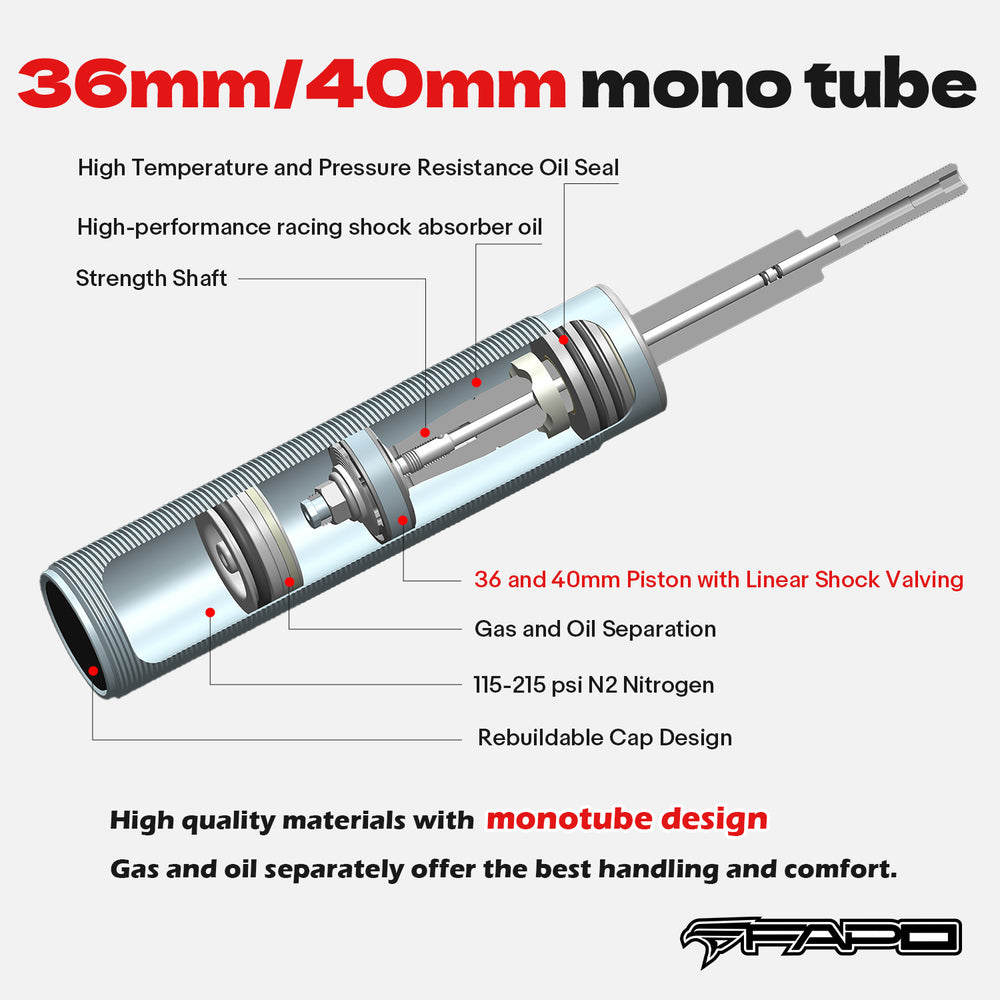

- Pro-Flow Mono-Tube Design with 40mm piston ensures rapid response, superior cooling, and fade-free performance.

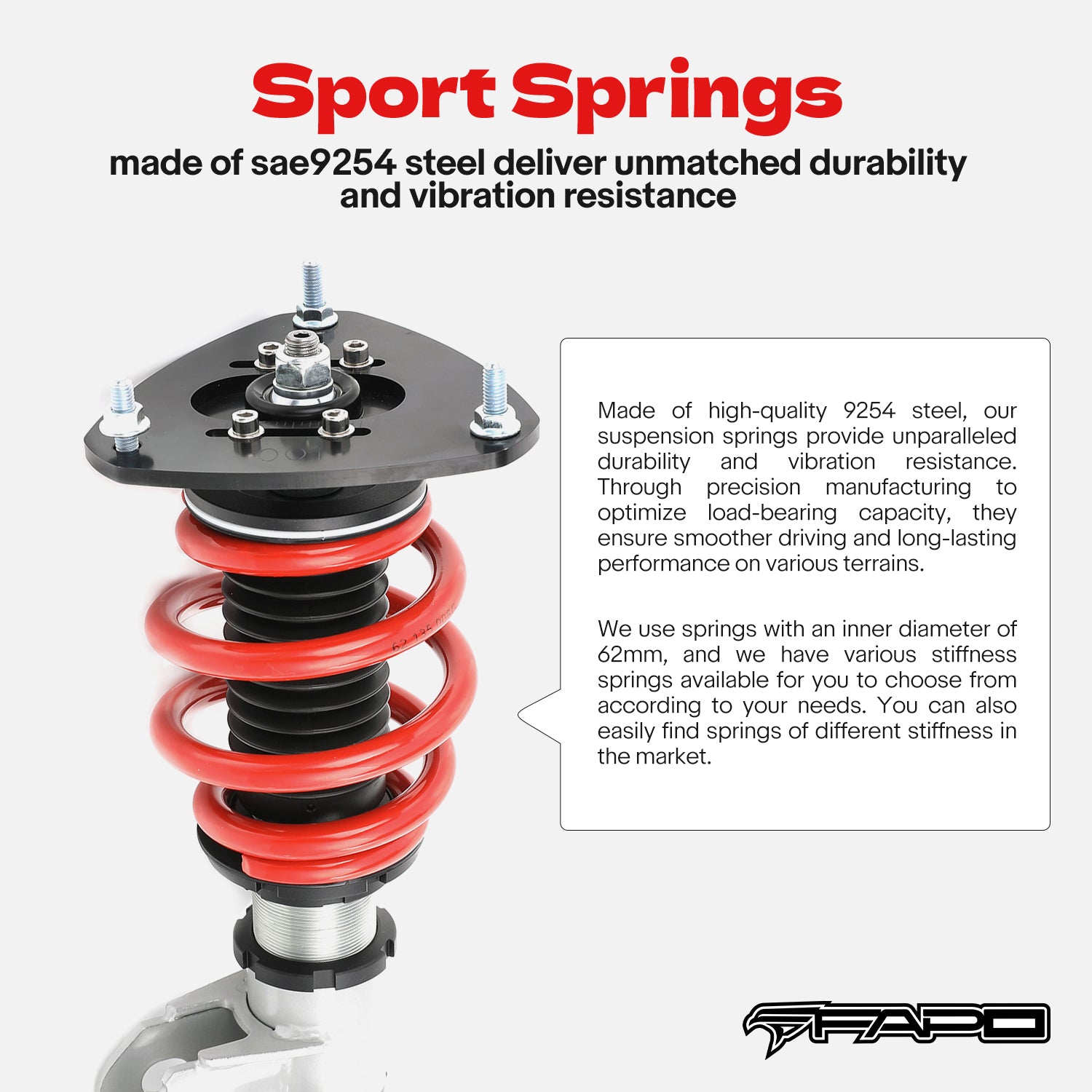

- UltraSpring+ Technology: 9254 high-tensile springs tested over 600,000 cycles with less than 0.04% sag for lasting performance.
- Gas-oil separation eliminates damping fade, even under aggressive driving or track conditions.
- Front adjustable camber plates optimize tire contact, improve grip, and extend tire life.
- Fully adjustable ride height lets you customize stance and enhance handling precision.

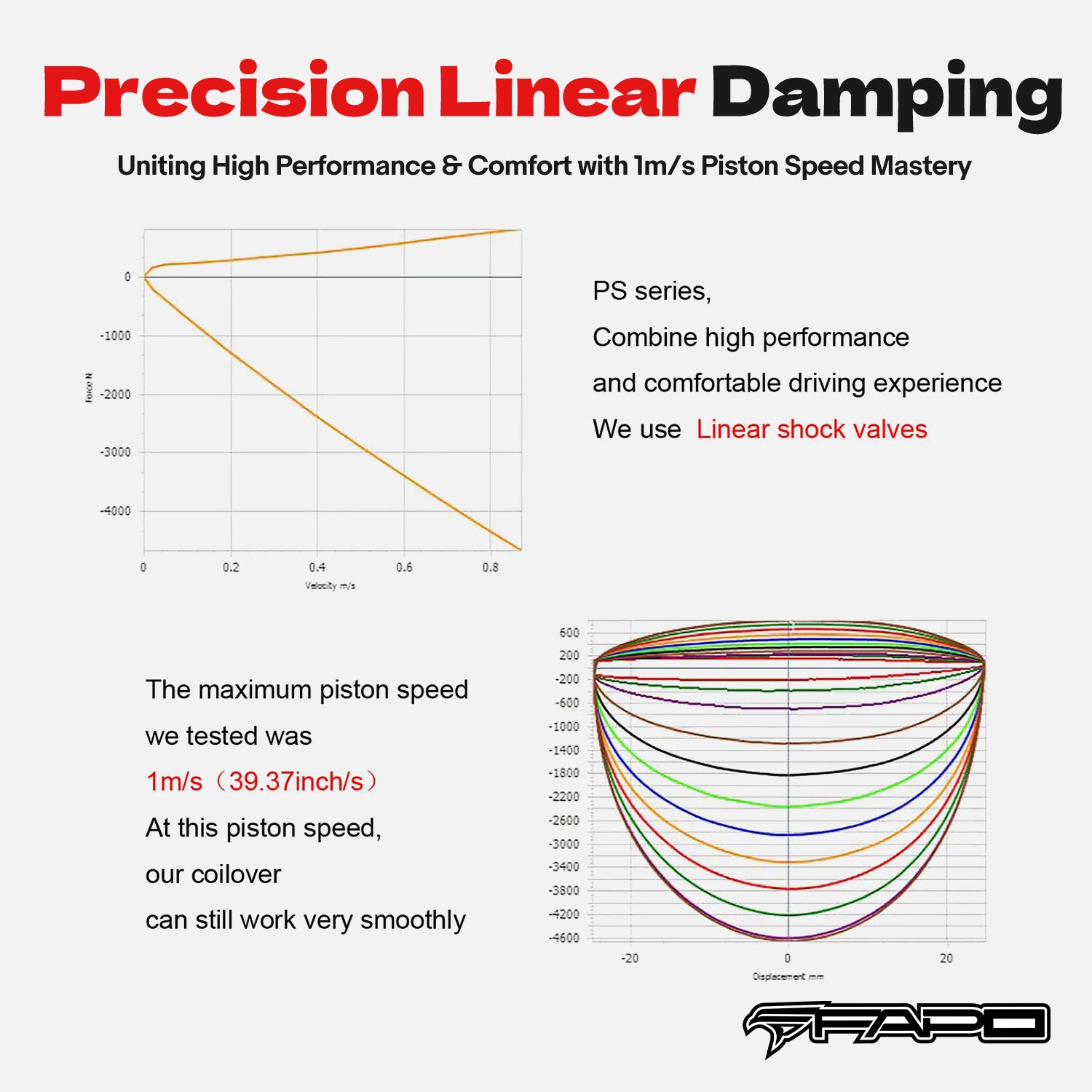

- Precision linear valving delivers balanced performance-sharp control with everyday comfort.

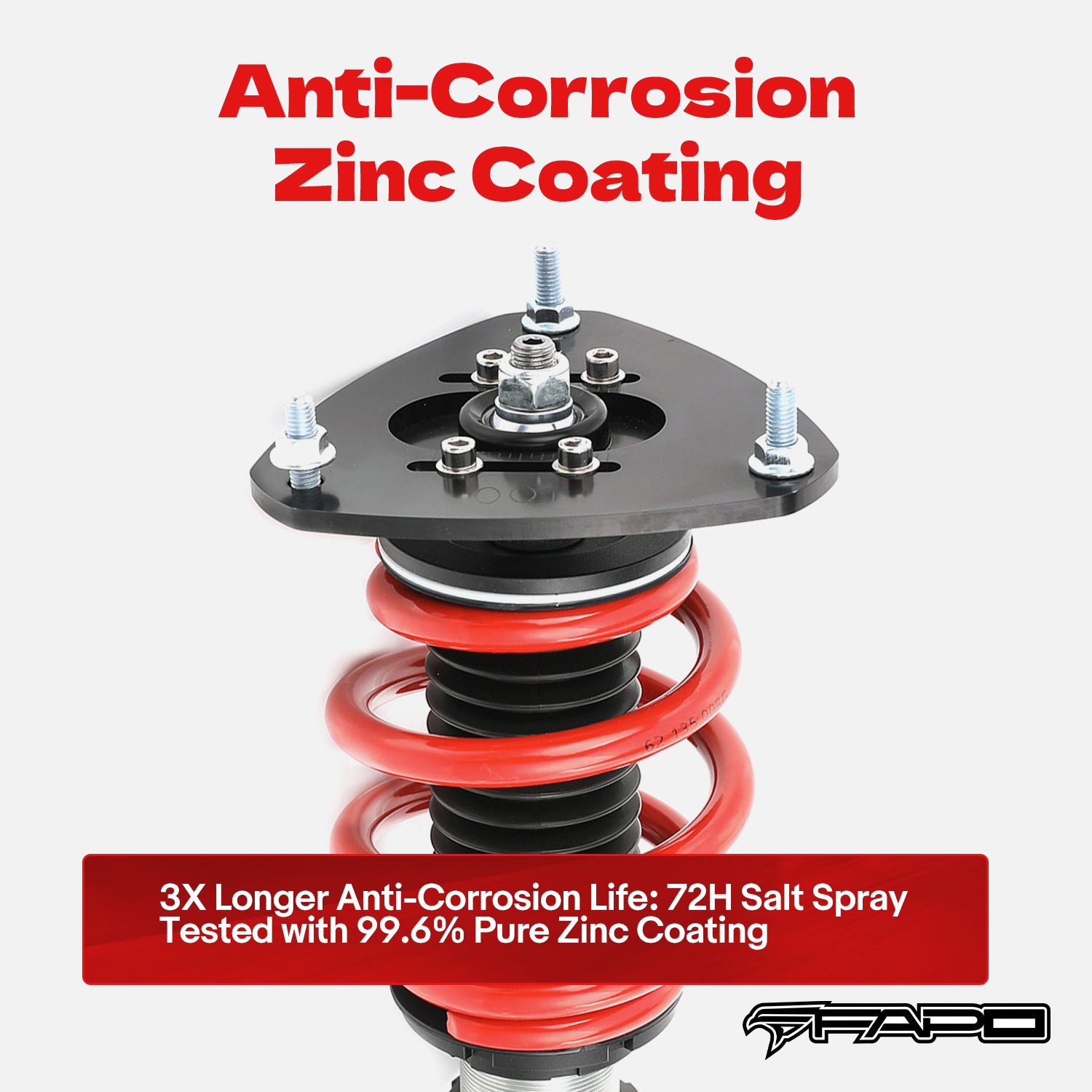

- Triple-layer zinc coating offers 3x corrosion resistance, 72-hour salt spray tested.
- Bolt-on installation with heavy-duty build and up to 2 years warranty for worry-free upgrade.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Application:
- Toyota 86/GT86/FT86 1st Gen ZN6/ZC6 2012-2020
- Toyota 86/GT86/FT86/GR86 2nd Gen ZN8/ZD8 2021+
- Scion FR-S ZN6 2012+
- Subaru BRZ 1st Gen ZC6 2012-2020
- Subaru BRZ 2nd Gen ZD8 2021+

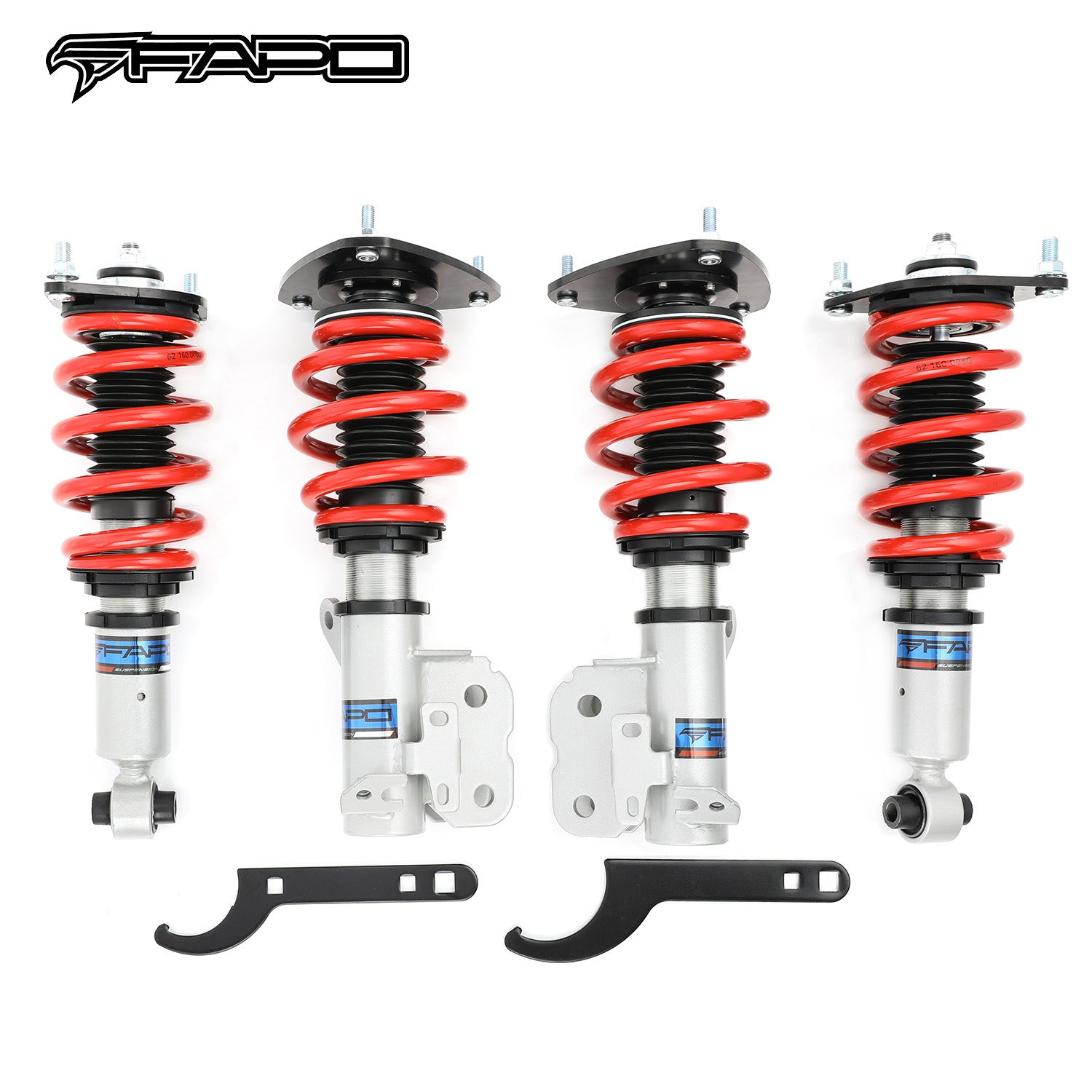

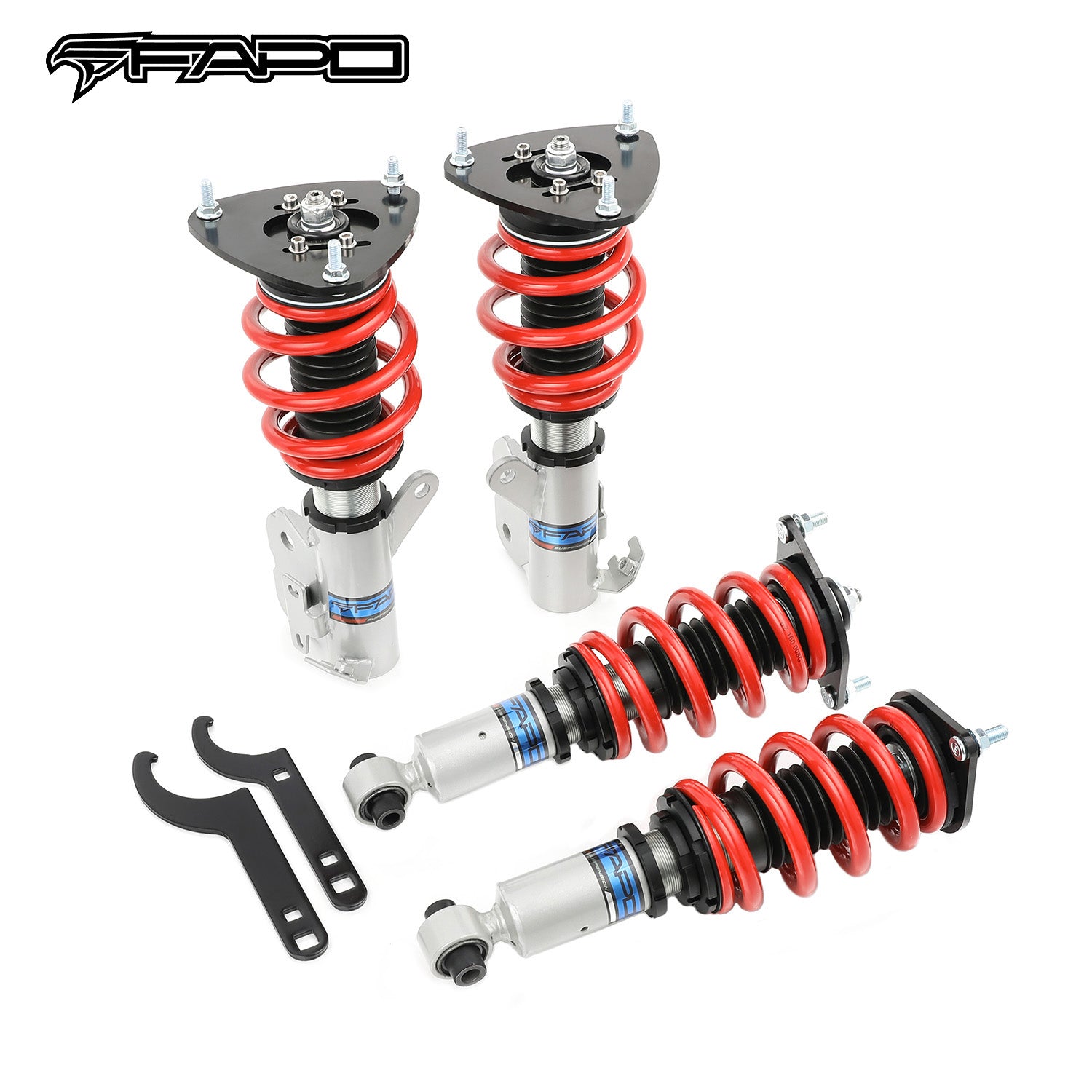

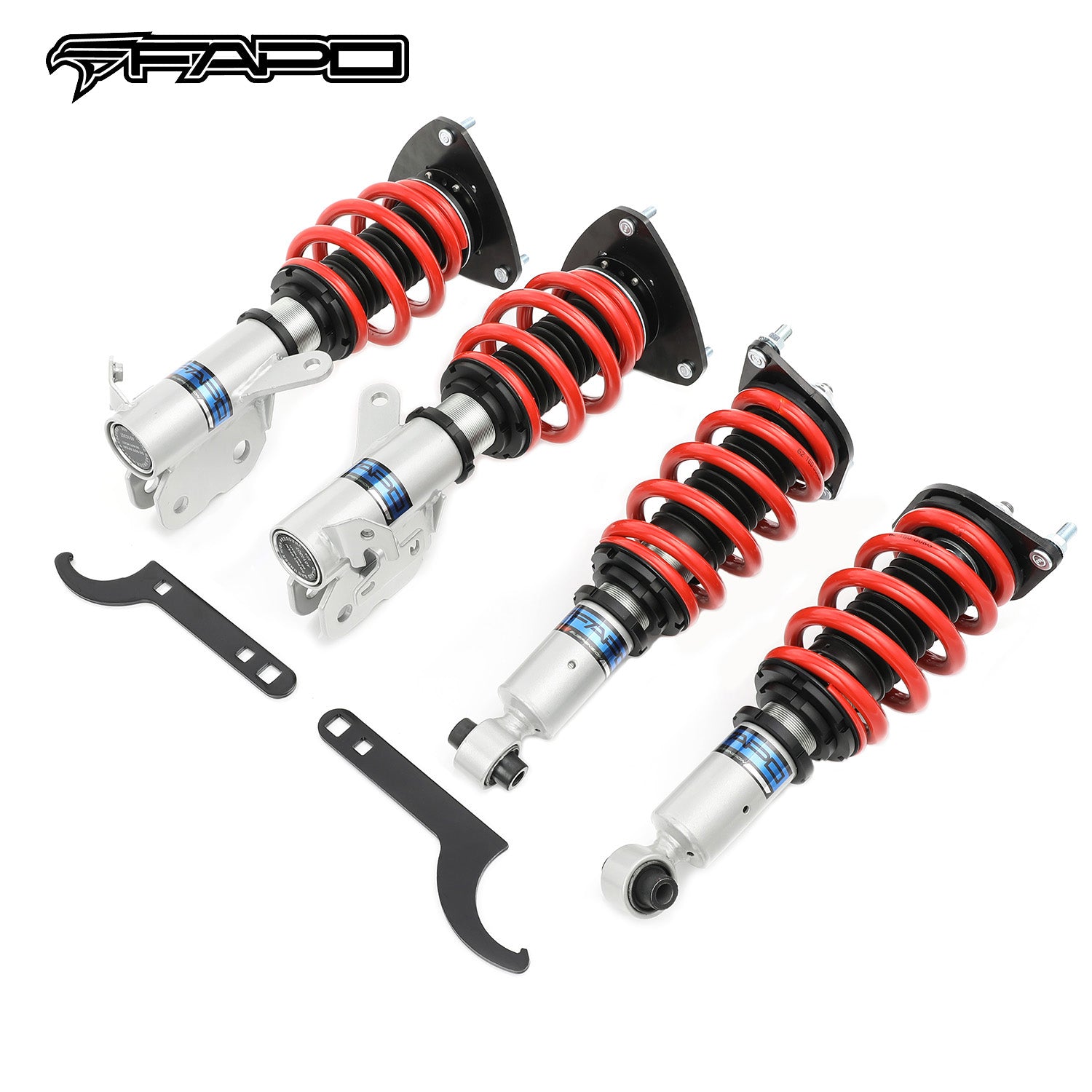

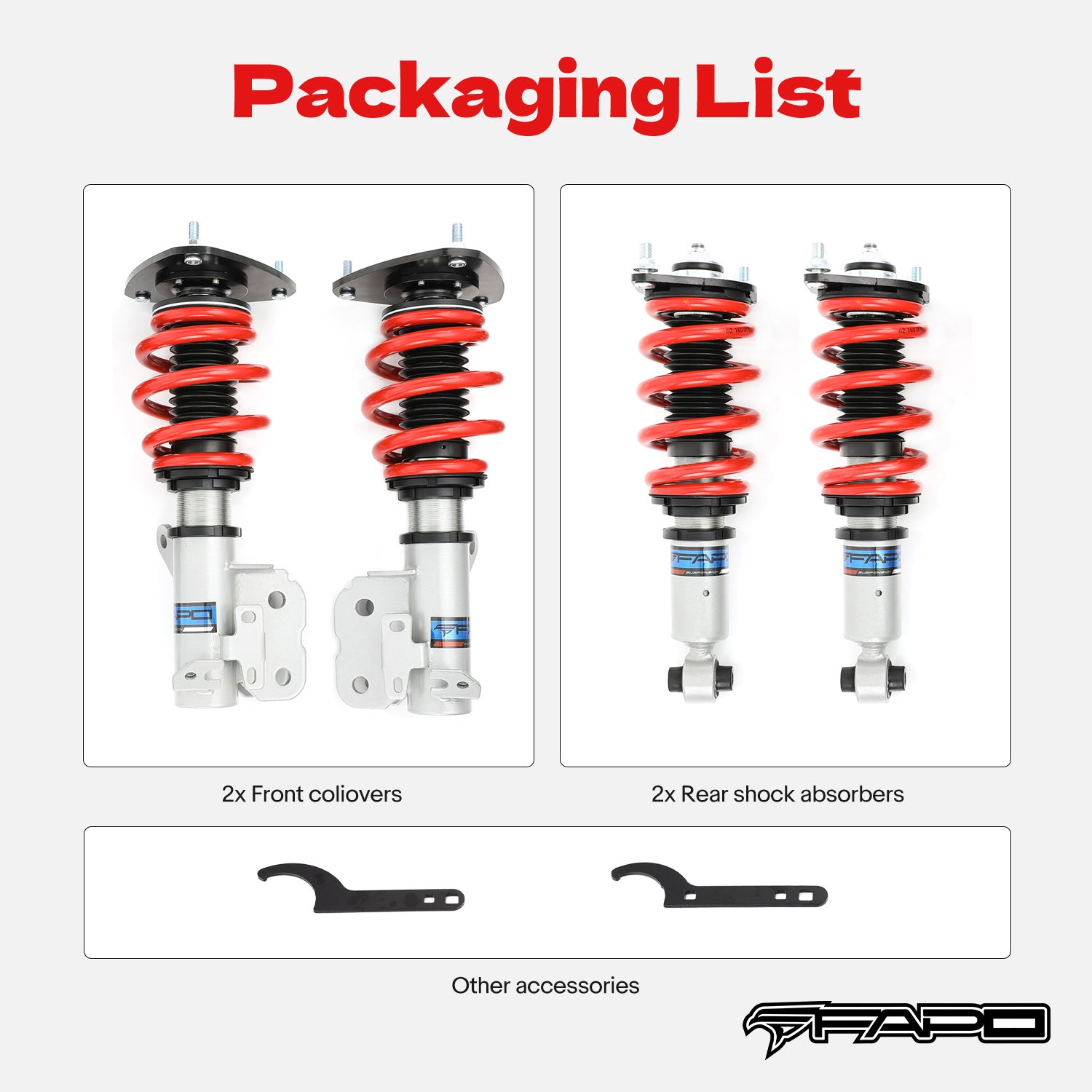

Package Includes:
- Front coilovers × 2 pcs

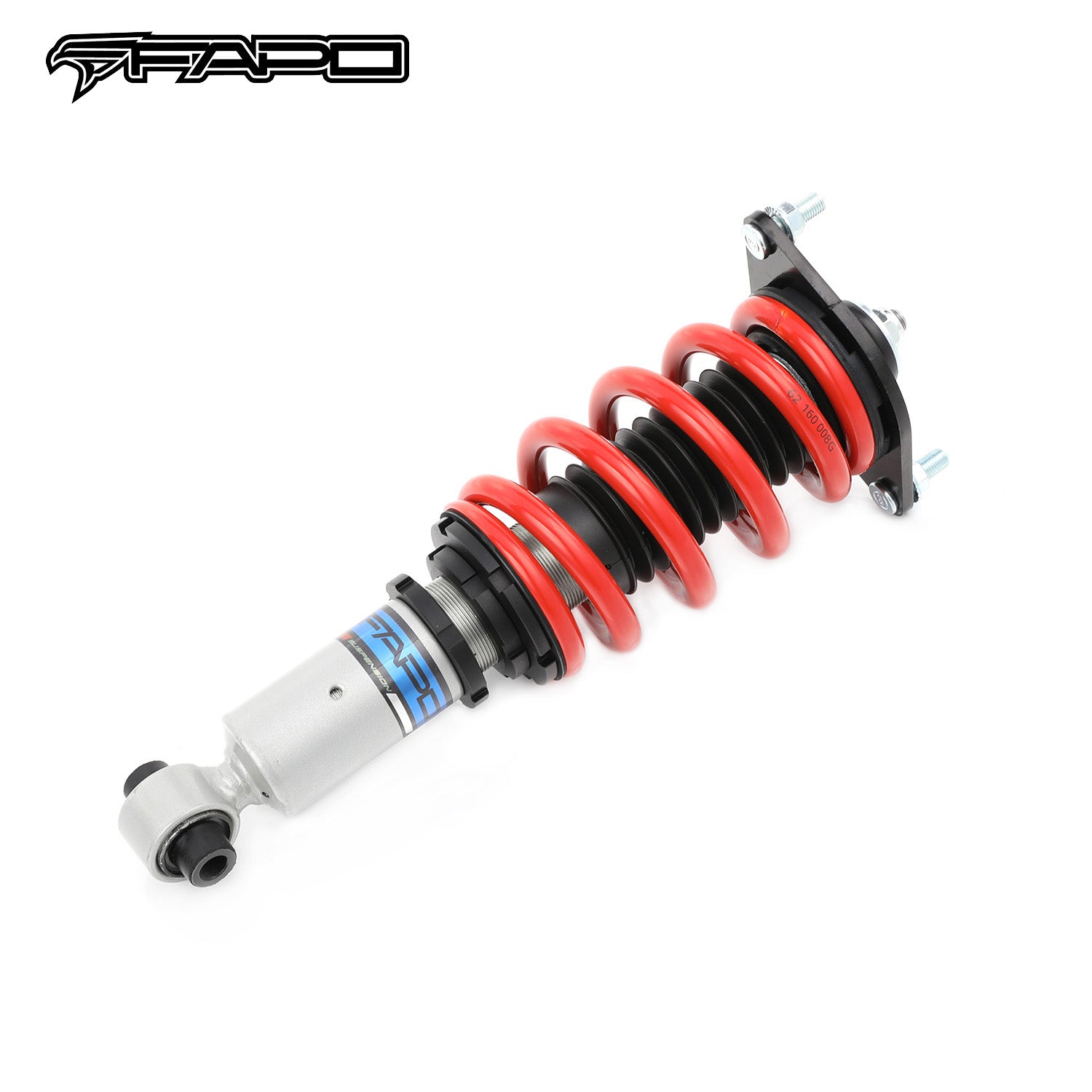

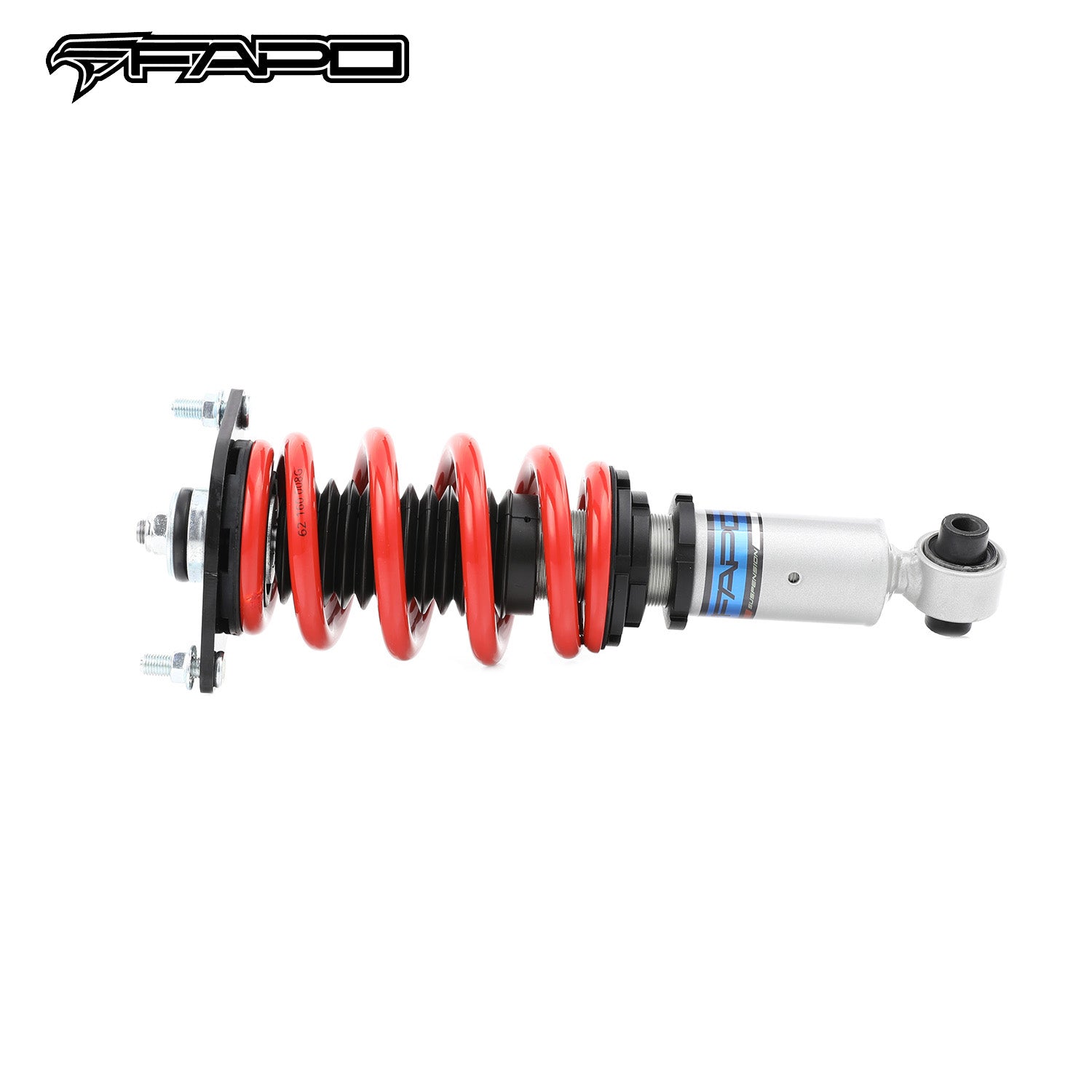

- Rear coilovers × 2 pcs

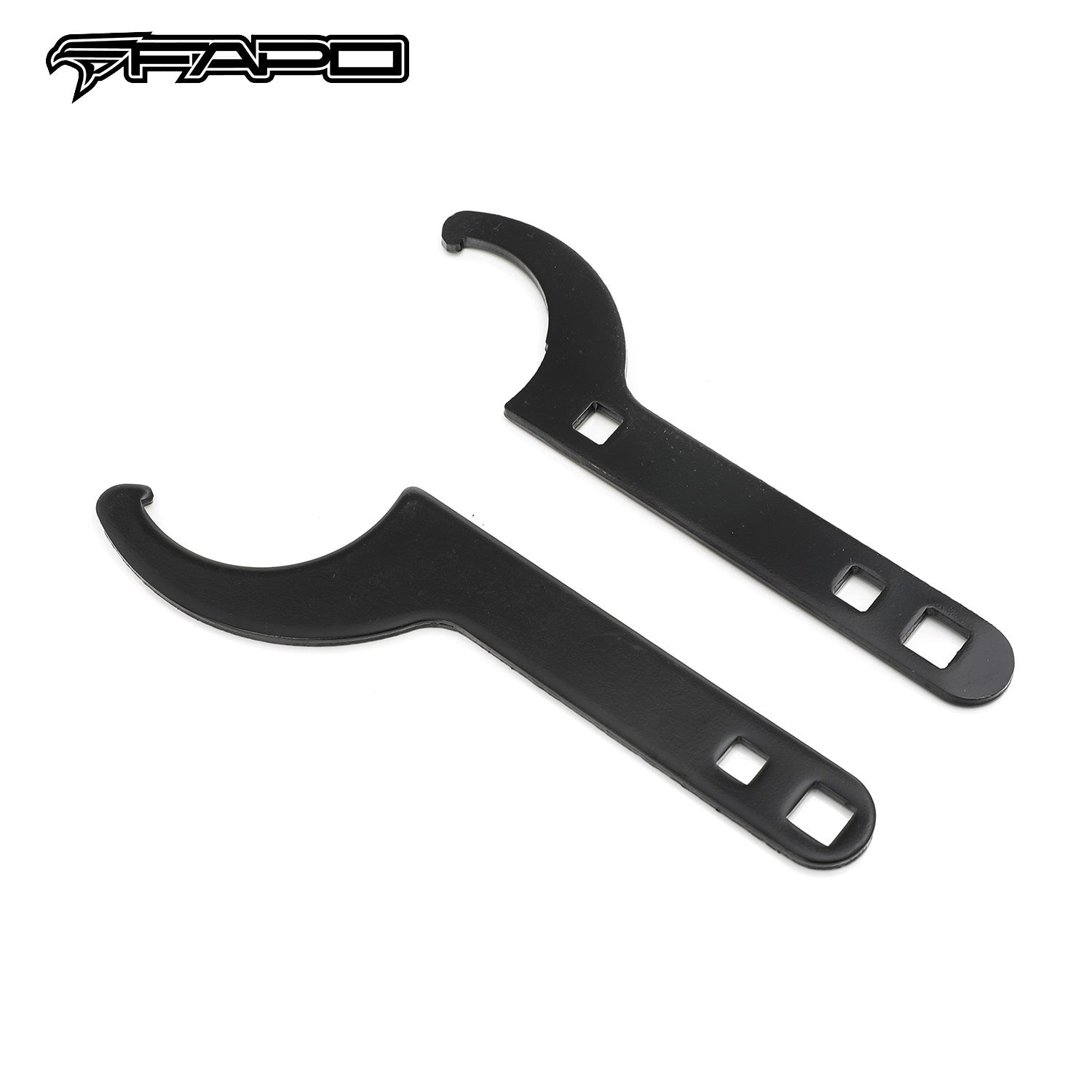

- Wrench × 2 pcs
Features:

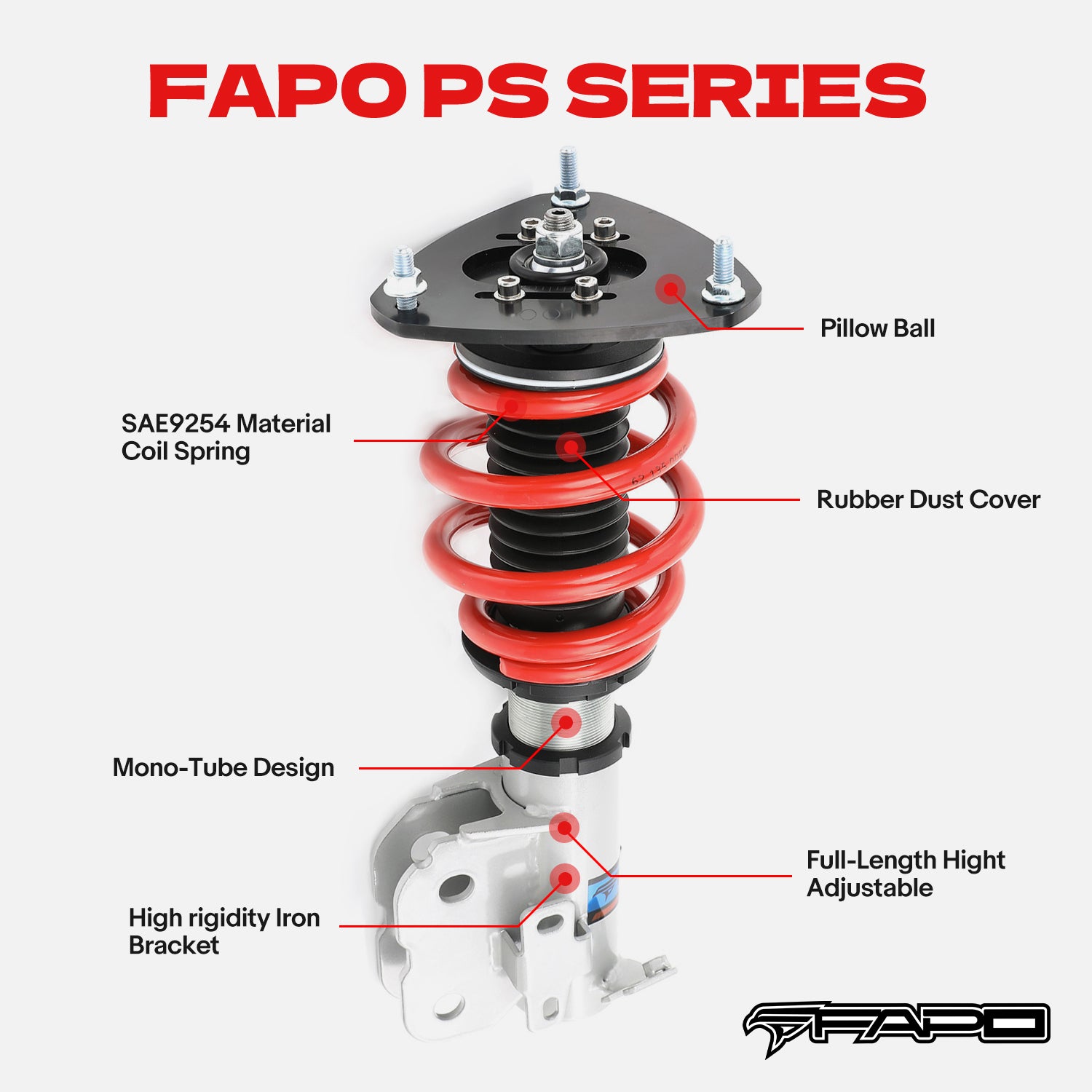

- Mono-tube shock design, provides larger capacity of oil and gas.

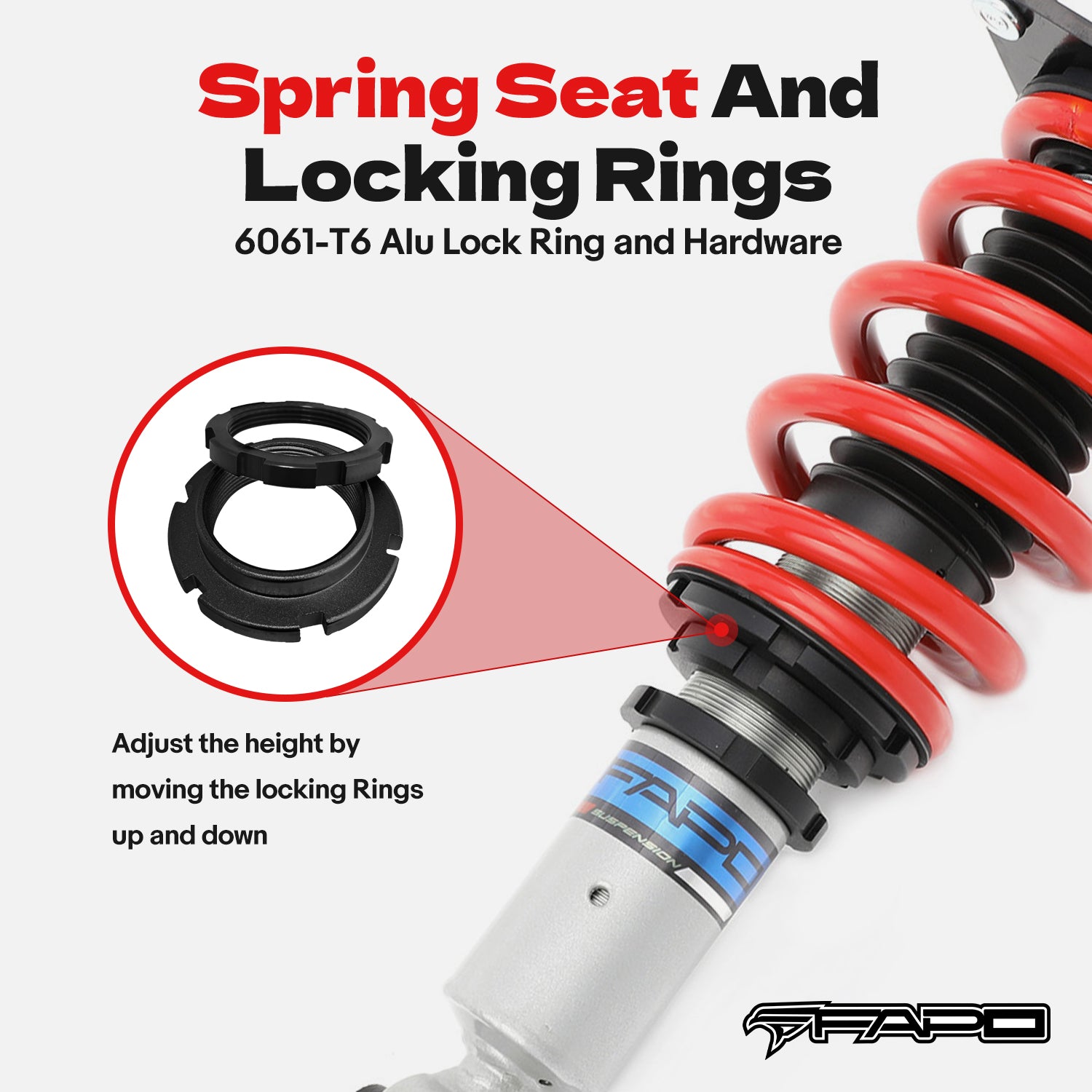

- Adjustable ride height.
- Adjustable pre-load spring tension.
- Hi Tensile performance spring - tested continuously 600,000 times with less than 0.04% spring distortion. Special surface treatment enhances durability and performance.
- All inserts come with fitted rubber boots to protect the damper and keep it clean.
- Improves handling performance without sacrificing comfortable ride.
- A fast and affordable way to easily upgrade your car's appearance.
- Easy installation with the right tools.
- Ideal for any track, drift, and fast road; also suitable for daily driving.
- The accessories shown in photos are included.
- Default 1-year warranty for any manufacturing defect, upgrade to 2 years with our Extended Warranty Program.
Technical Specifications:
- Spring rate Front: 10 kg/mm
- Spring rate Rear: 12 kg/mm
- Adjustable height: Yes

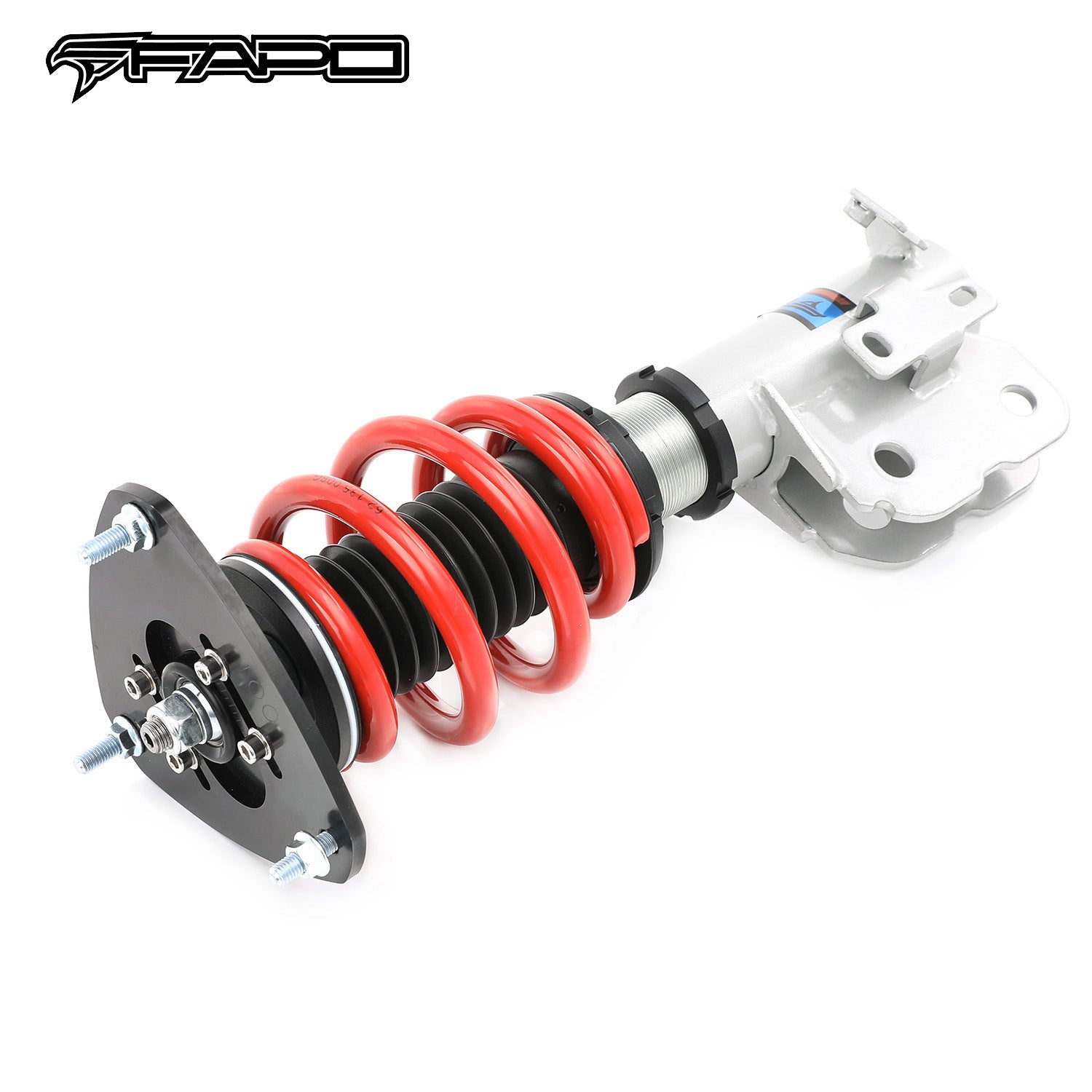

- Adjustable camber plate: Only Front coilovers
- Adjustable damper: Non Adjustable Damper Force
Warranty
All items carry a standard 1-year warranty from the date of purchase. Proof of purchase is required, and it is recommended to provide your order number. To speed up warranty claims, please submit images and as much detailed documentation as possible. Pictures and videos are usually sufficient, and defective items usually do not need to be returned. Occasionally, we may request more information to confirm the issue and improve resolution.
Compatibility
| Year | Make | Model |
|---|---|---|
| 2012-2020 | Toyota | 86/GT86/FT86 1st Gen ZN6/ZC6 |
| 2021+ | Toyota | 86/GT86/FT86/GR86 2nd Gen ZN8/ZD8 |
| 2012+ | Scion | FR-S ZN6 |
| 2012-2020 | Subaru | BRZ 1st Gen ZC6 |
| 2021+ | Subaru | BRZ 2nd Gen ZD8 |
Specs
Brand
FAPO
Cylinder Length
8.67"(F)/ 7.49"(R)
Travel Length
3.9"(F)/ 3.4"(R)
Spring Rate
447 lb/in(F)/ 447 lb/in(R)
Spring Length
5.31"(F)/ 6.3"(R)
Tube Diameter
1.85"(F)/ 1.69"(R)
Shock Rod Diameter
0.79"(F)/ 0.49"(R)
Rod End Thread
M12(F)/ M12(R)
Top Mounts

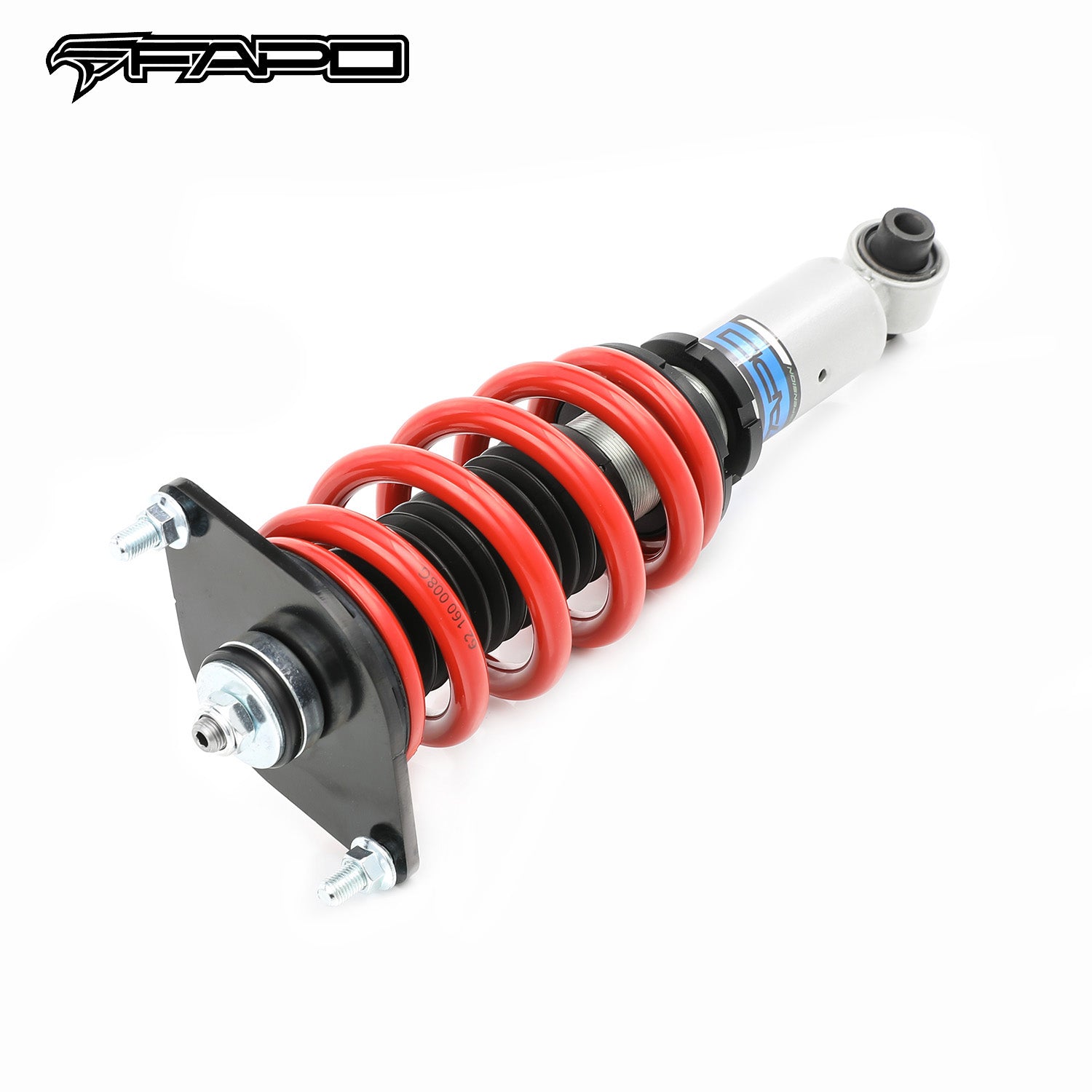

Pillow Ball Camber Plate(F)/ With standard top mounts (R)
Damping Level
NON
Warranty
1 Year
