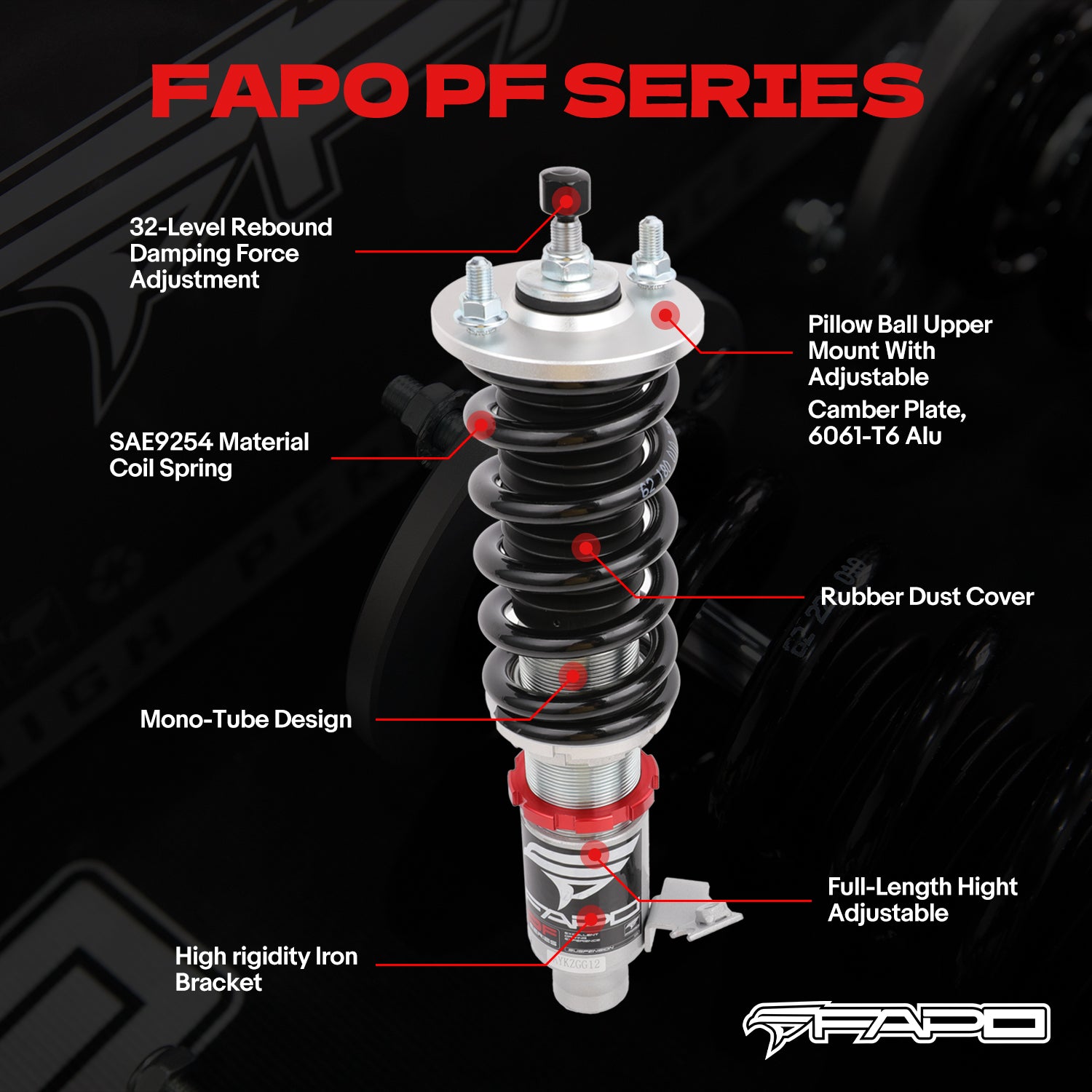

FEATURES:

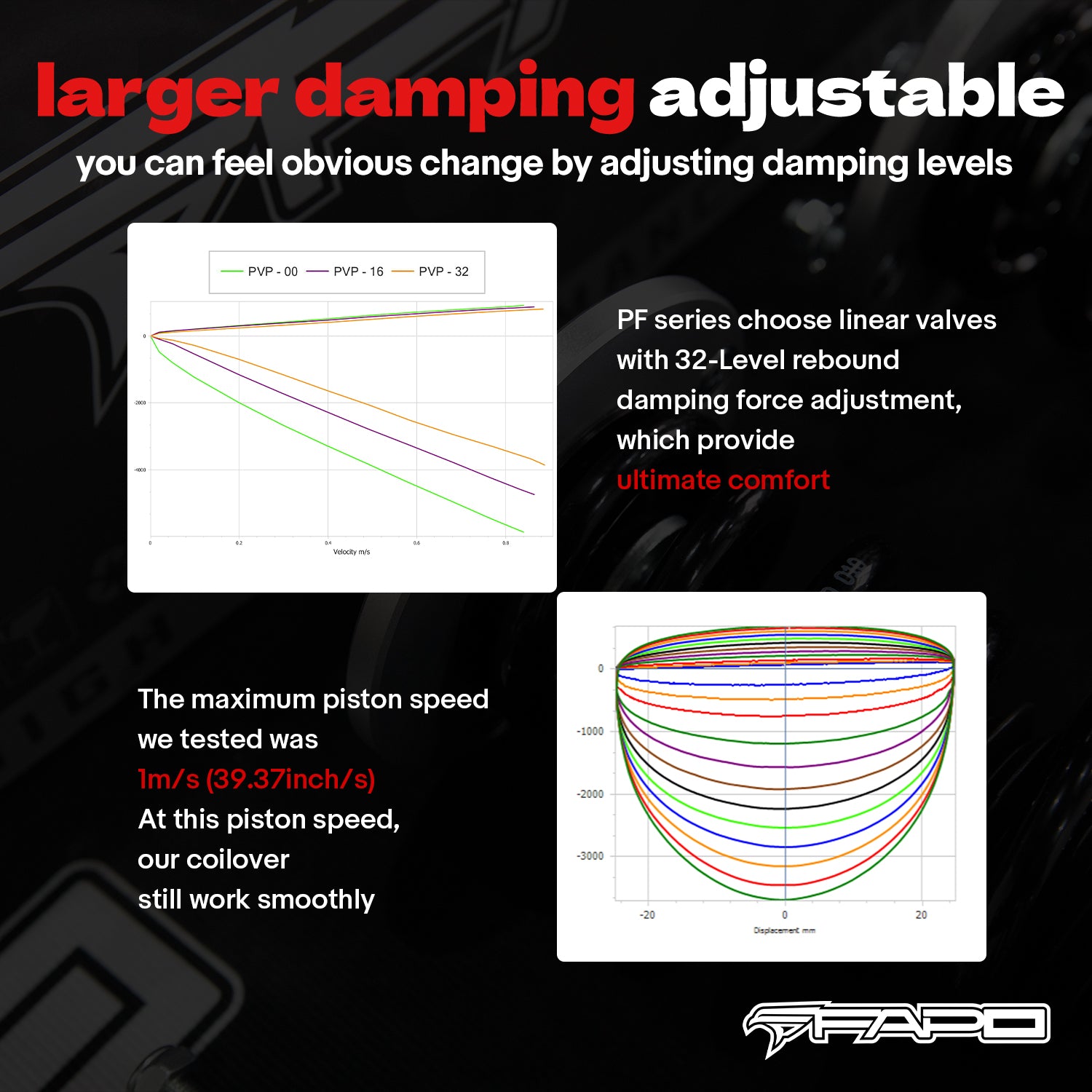

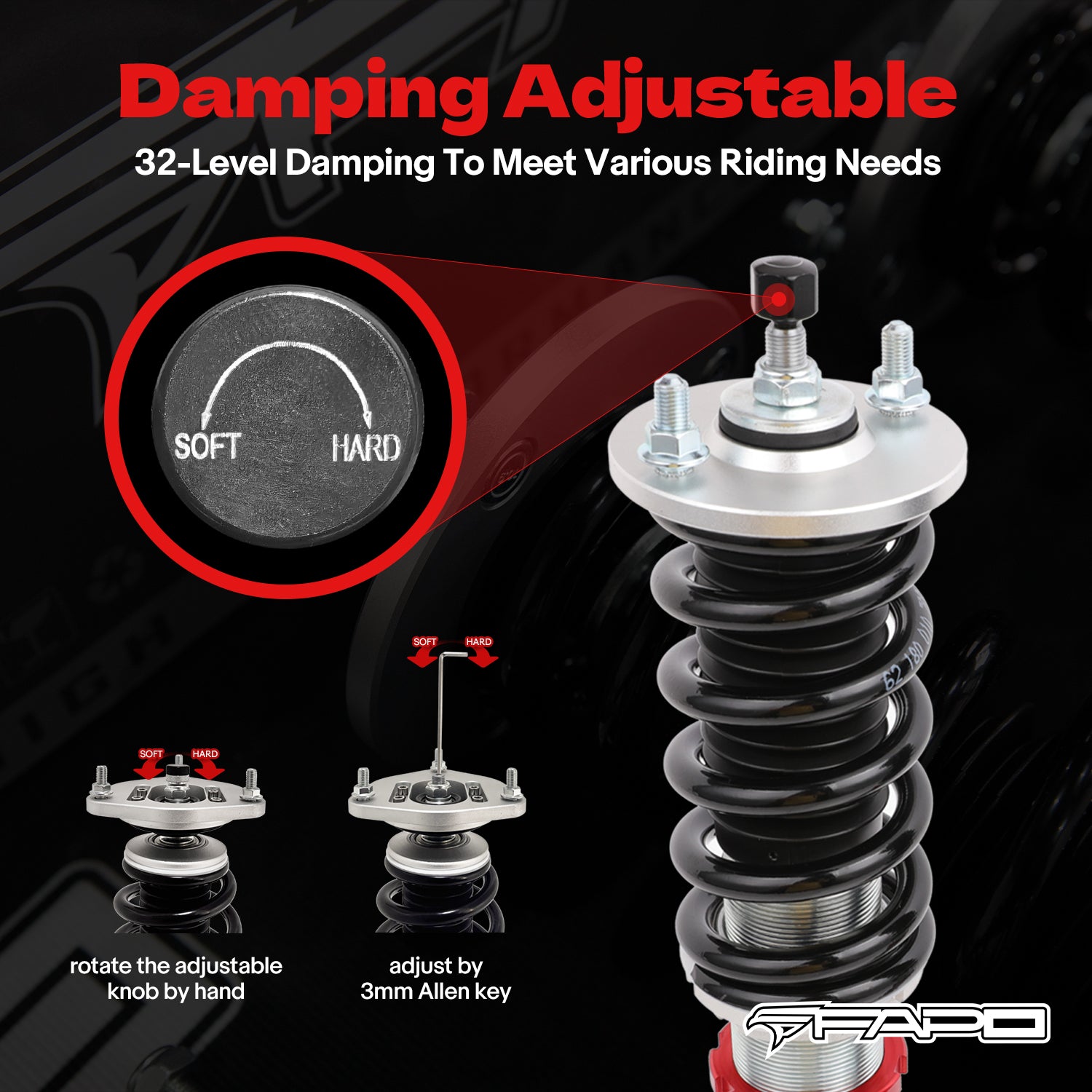

- 32-way adjustable damping allows precise tuning for comfort, track, or aggressive street driving.

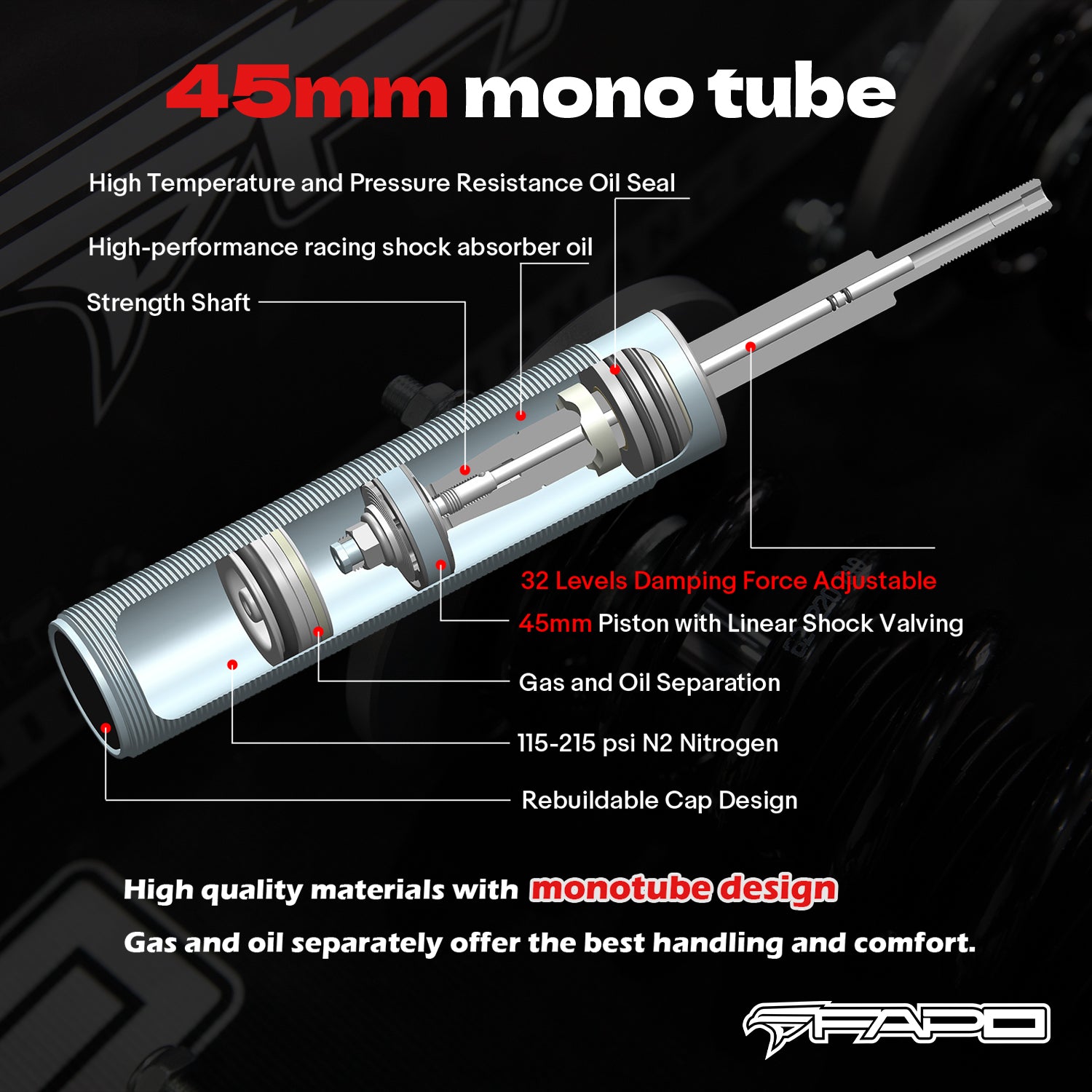

- Large 45mm mono-tube design with nitrogen gas separation delivers superior damping response and heat resistance.
- Forged 4130 chromoly steel threaded sleeves ensure extreme durability and smooth height adjustment.
- High-performance NOK oil seals and German-sourced Fuchs shock oil provide consistent damping and extended lifespan.

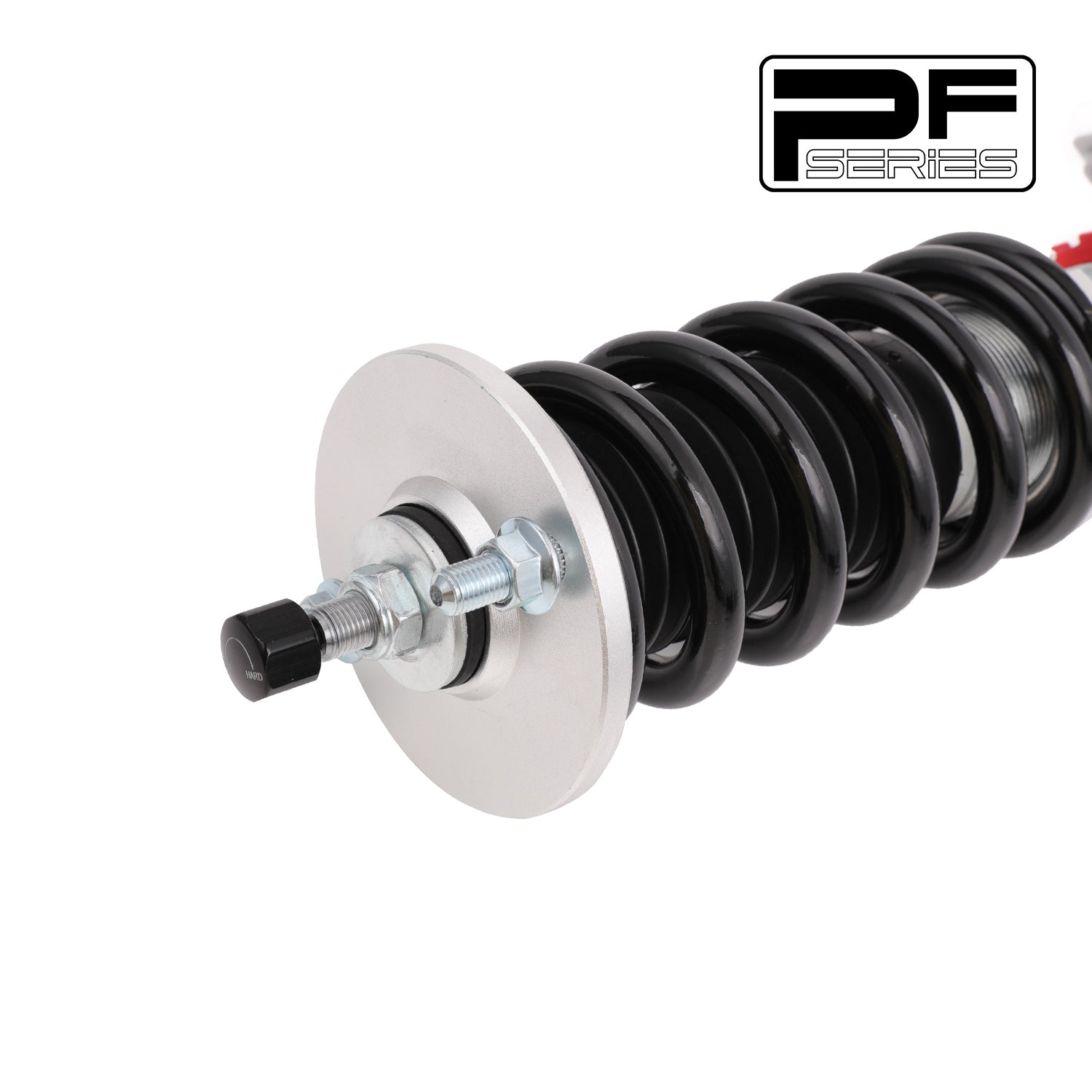

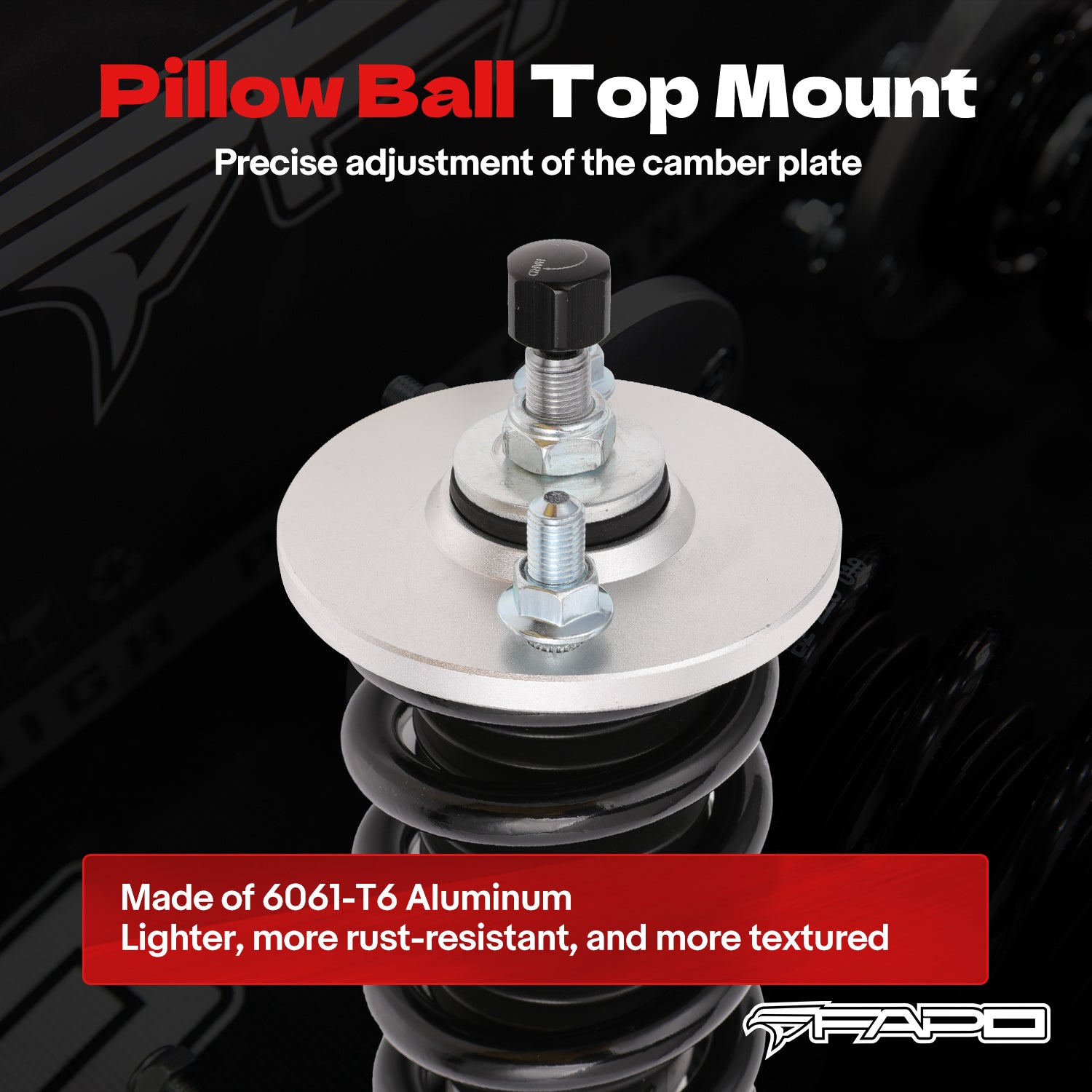

- Aluminum top mounts and lower perches reduce unsprung weight and improve steering responsiveness.
- Precision sintered metal piston ensures stable valving performance under high pressure and temperature.

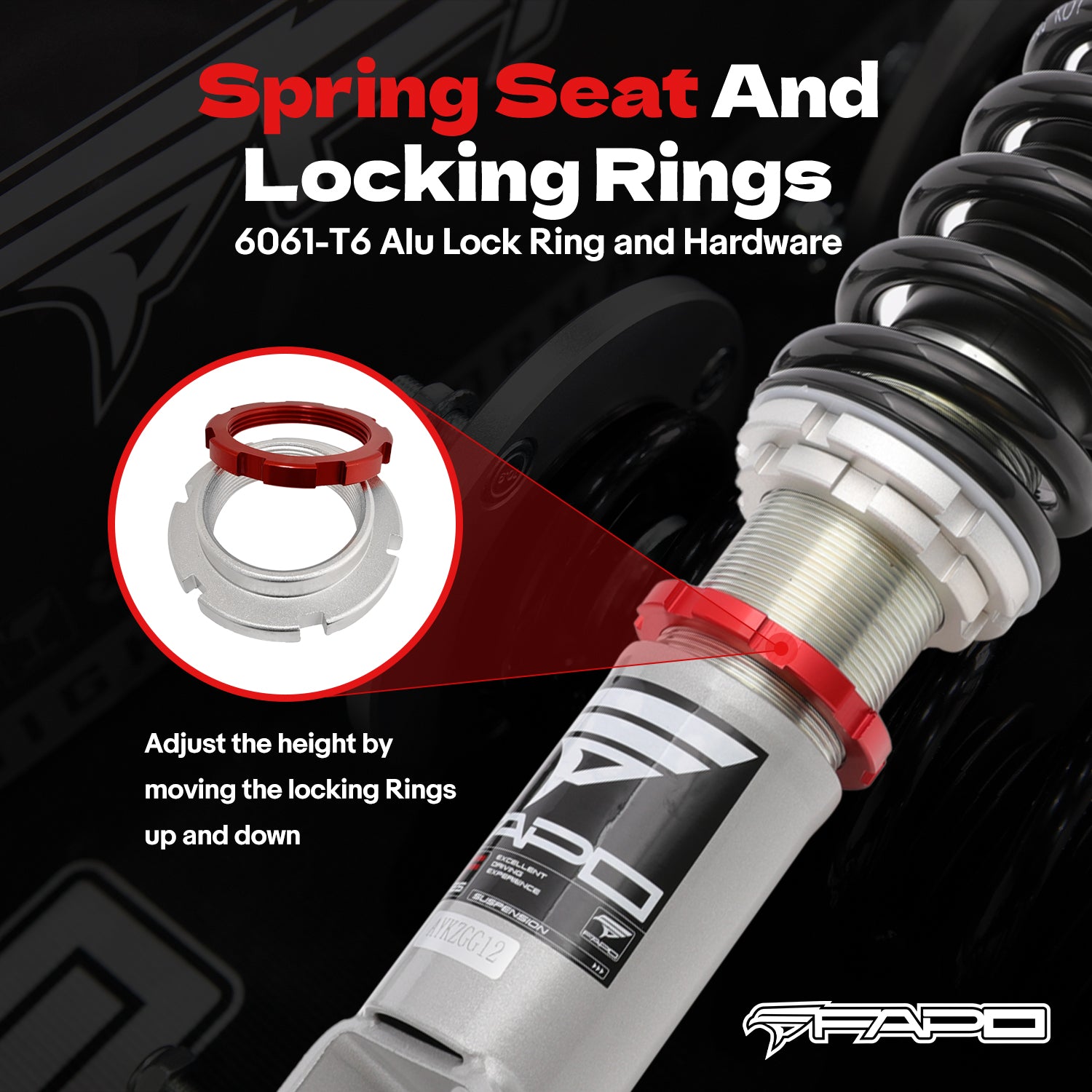

- Threaded body allows full ride height adjustment for custom stance and optimized handling geometry.
- Heavy-duty construction with Thai-sourced rubber bushings for balanced comfort and long-term reliability.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Application:

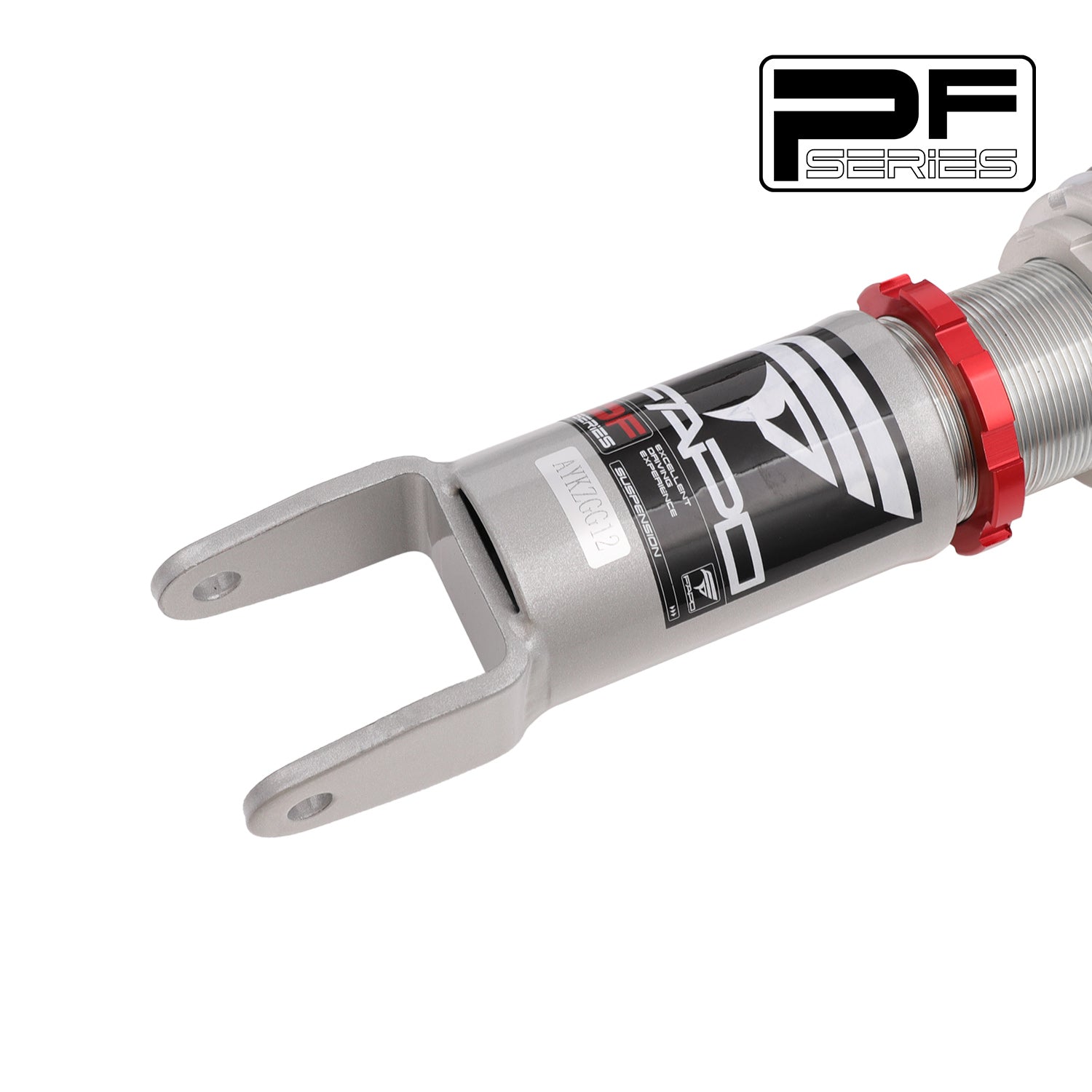

- Honda Civic 4th Gen (rear-fork) EF/ED 1988-1991
- Honda Civic 5th Gen (rear-fork) EG6/EH 1992-1995
- Honda Civic 6th Gen (rear-fork) EK/EM/DC2/EJ 1996-2000
- Honda CR-X 2nd Gen (rear-fork) ED8/ED9 1988-1991
- Acura Integra 2nd Gen DA5-DA9, DB1-DB2 1990-1993
- Acura Integra 3rd Gen (rear-fork, excludes Type R) DB/DC 1994-2001
Note: This is a lowering kit; even at maximum height the vehicle will sit 1-1.5 inches lower than stock. Please confirm you want to lower your car before purchase.

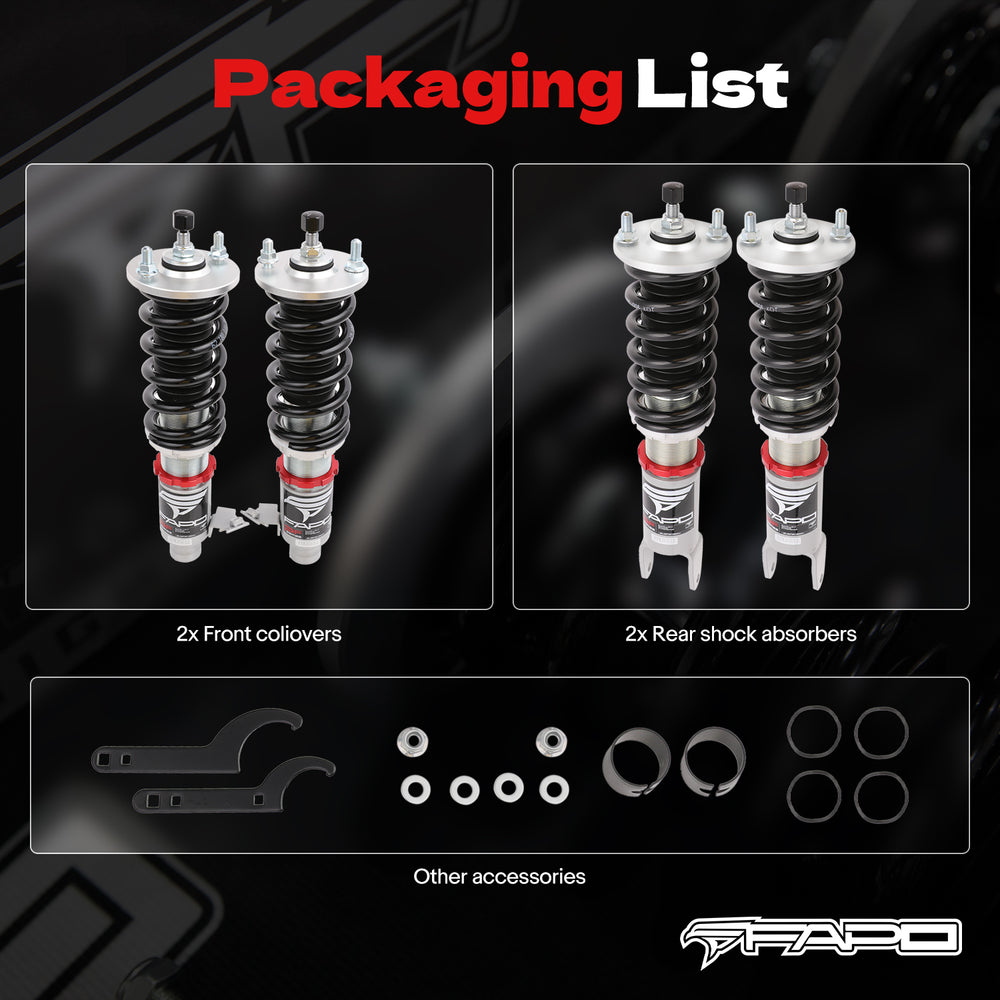

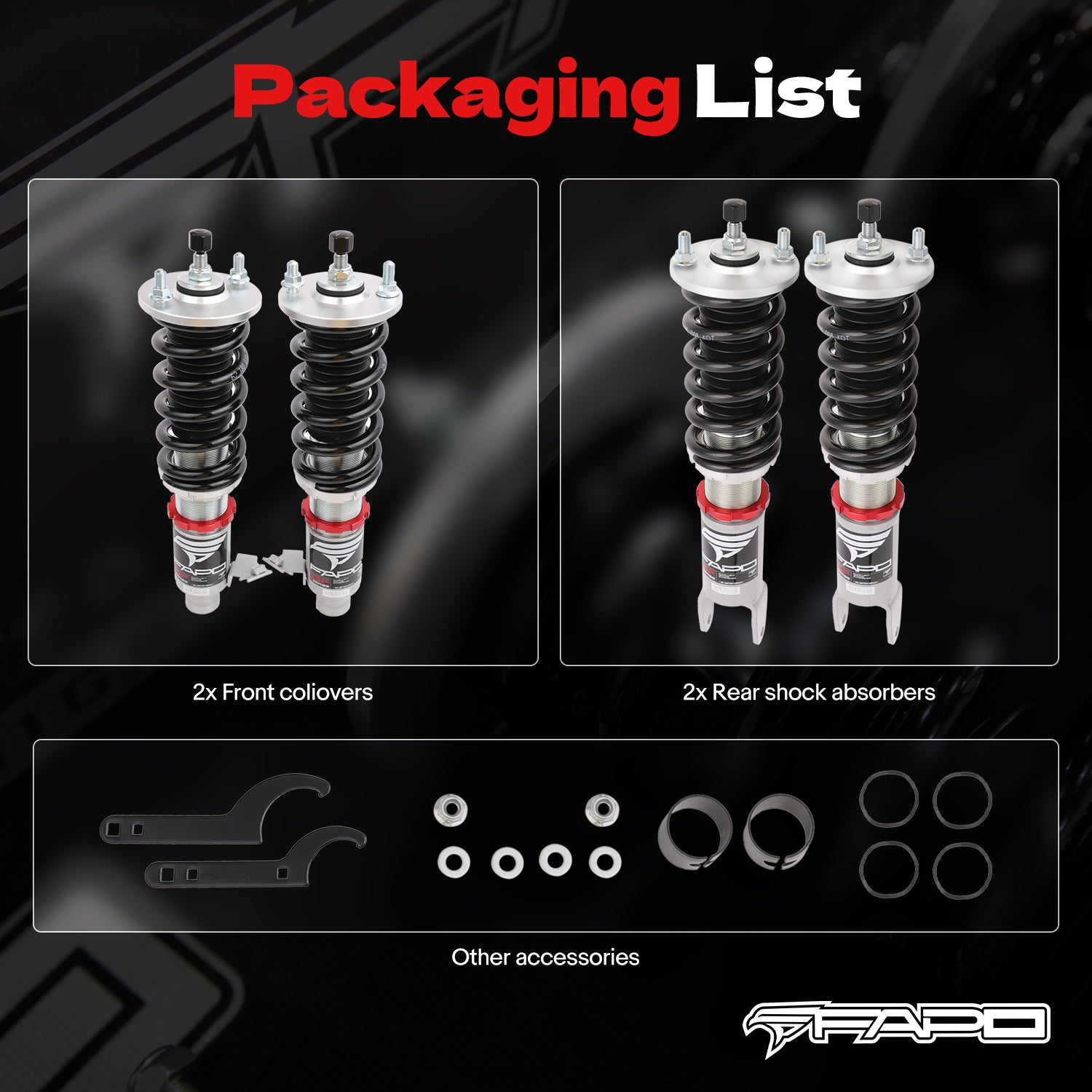

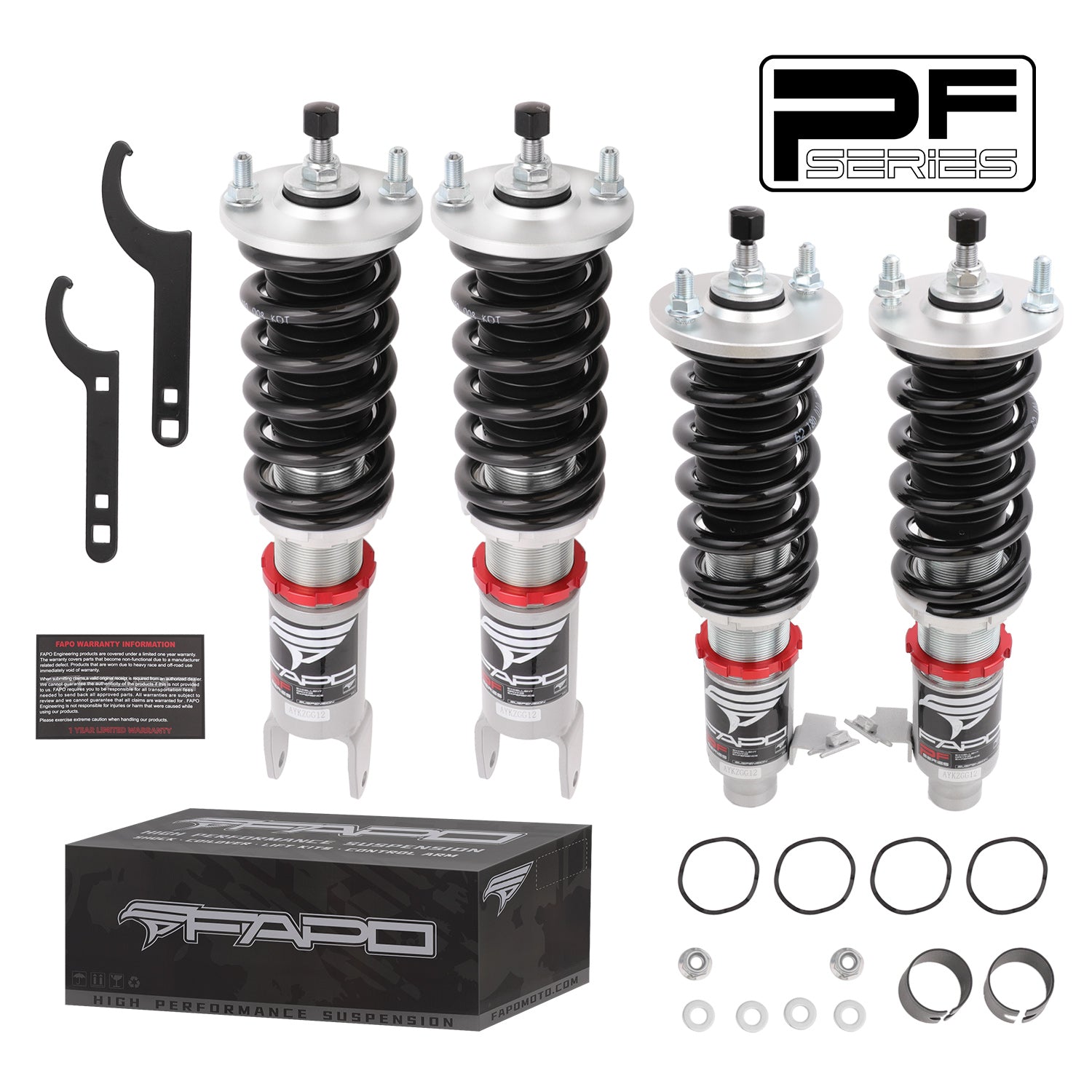

Package Includes:

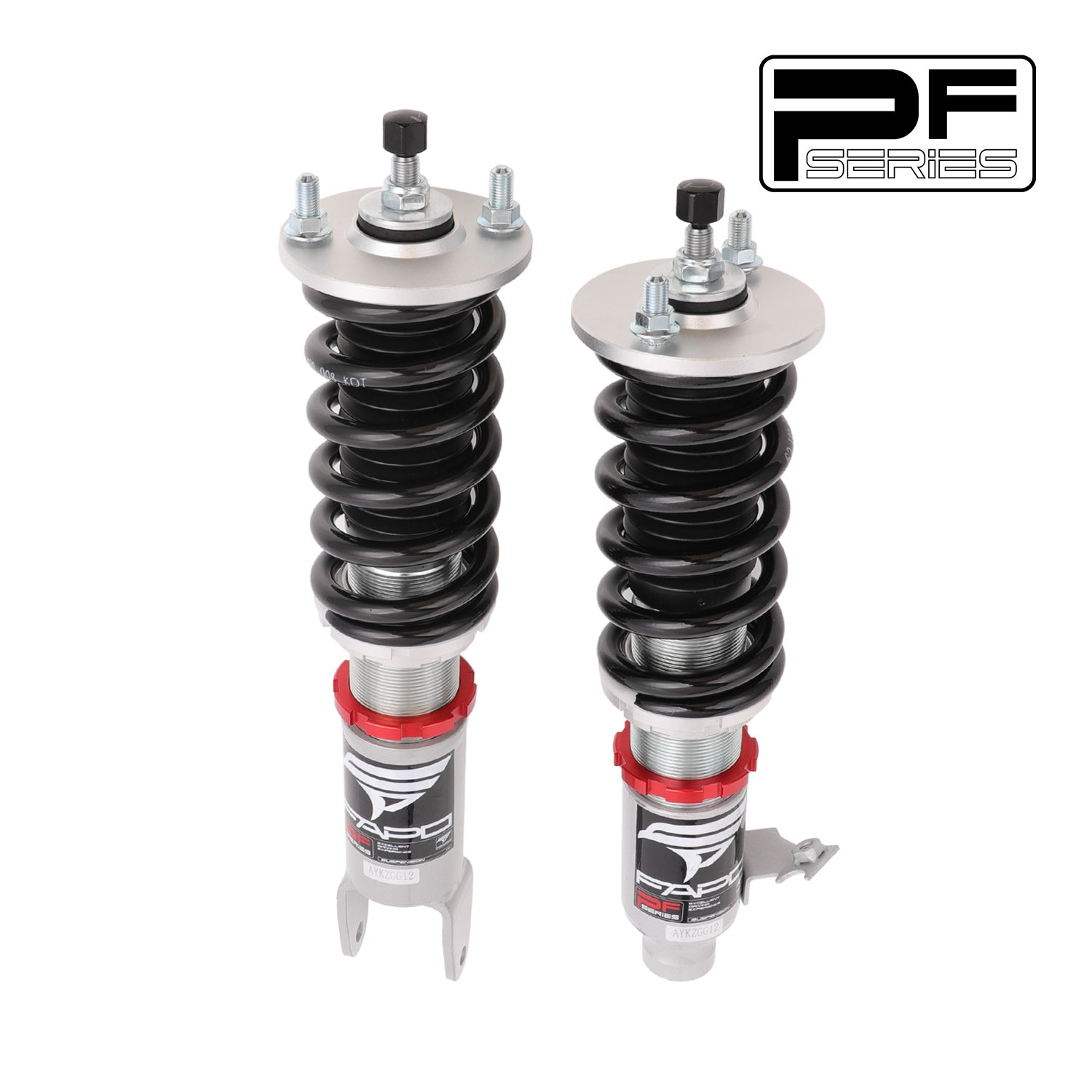

- Front coilovers × 2
- Rear coilovers × 2
- Spanners × 2
Features:
- Mono-tube shock design, provides larger oil & gas capacity
- Adjustable ride height (max height still 1-1.5" lower than factory)
- Adjustable pre-load spring tension

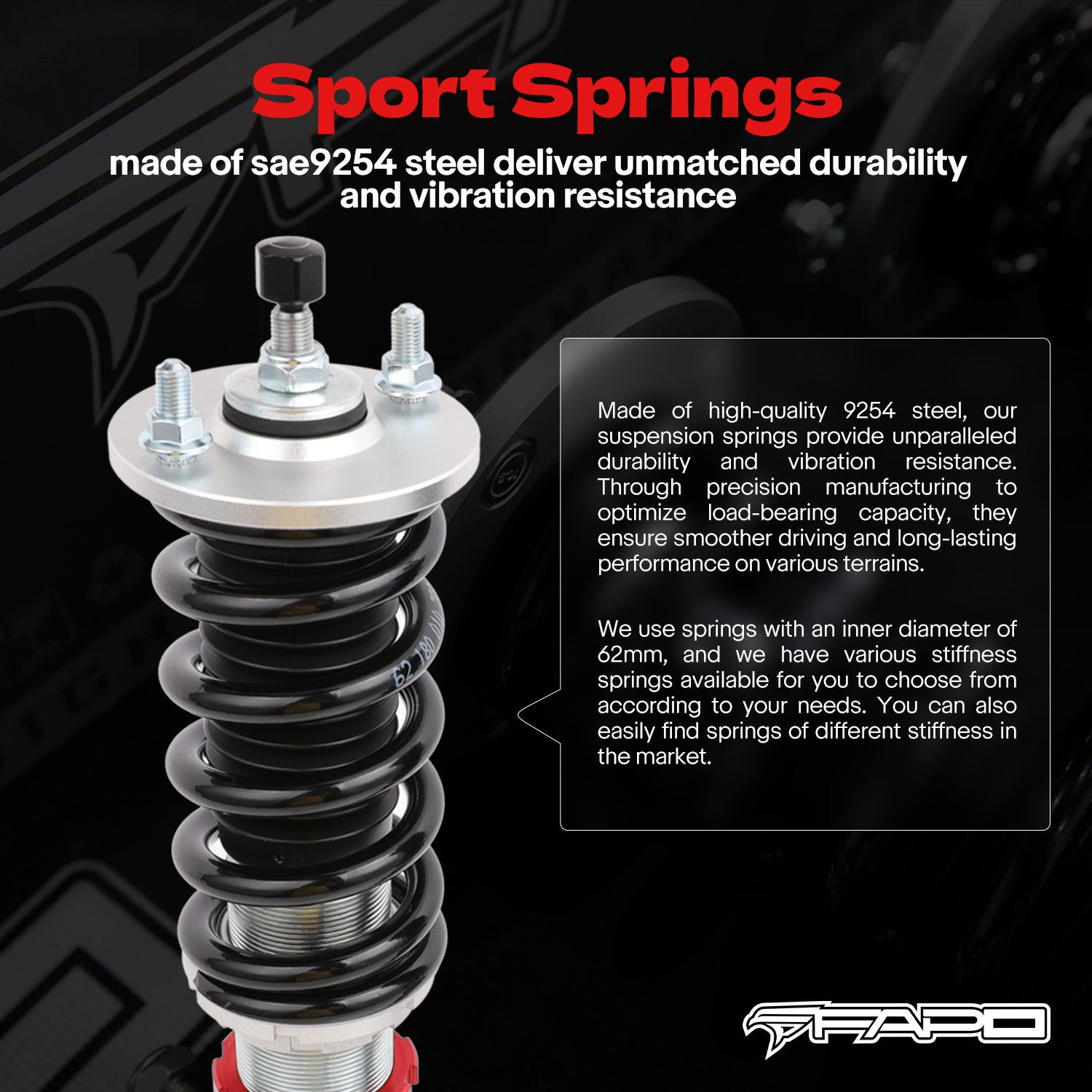

- High-tensile performance spring: < 0.04 % distortion after 600 k cycles, surface-treated for durability
- Rubber boots included on all inserts to protect dampers & keep clean
- Better handling without sacrificing ride comfort
- Quick, cost-effective way to upgrade appearance
- Easy installation with proper tools
- Suitable for track, drift, fast-road, and daily driving
- All pictured accessories included
- Default 1-year warranty for any manufacturing defect, upgrade to 2 years with our Extended Warranty Program
Technical Specifications:
- Spring rate Front: 10 kg/mm (557 lbs/in)
- Spring rate Rear: 8 kg/mm (446 lbs/in)
- Adjustable height: Yes
- Adjustable camber plate: No
- Adjustable damper: 32-level damper force adjustment
Compatibility
| Year | Make | Model |
|---|---|---|
| 1988-1991 | Honda | Civic 4th Gen (rear-fork) EF/ED |
| 1992-1995 | Honda | Civic 5th Gen (rear-fork) EG6/EH |
| 1996-2000 | Honda | Civic 6th Gen (rear-fork) EK/EM/DC2/EJ |
| 1988-1991 | Honda | CR-X 2nd Gen (rear-fork) ED8/ED9 |
| 1990-1993 | Acura | Integra 2nd Gen DA5-DA9, DB1-DB2 |
| 1994-2001 | Acura | Integra 3rd Gen (rear-fork, excludes Type R) DB/DC |
Specs
Brand
FAPO
Cylinder Length
7.88"(F)/ 8.67"(R)
Travel Length
3.7"(F)/ 4.1"(R)
Spring Rate
559 lb/in(F)/ 447 lb/in(R)
Spring Length
7.09"(F)/ 7.09"(R)
Tube Diameter
2.09"(F)/ 2.09"(R)
Shock Rod Diameter
0.49"(F)/ 0.49"(R)
Valve
4-A1-9(F)/ 4-A1-7(R)
Rod End Thread
M12(F)/ M12(R)
Top Mounts
With standard top mounts(F)/ With standard top mounts (R)
Damping Level
32 Levels
Warranty
1 Year
