FEATURES:

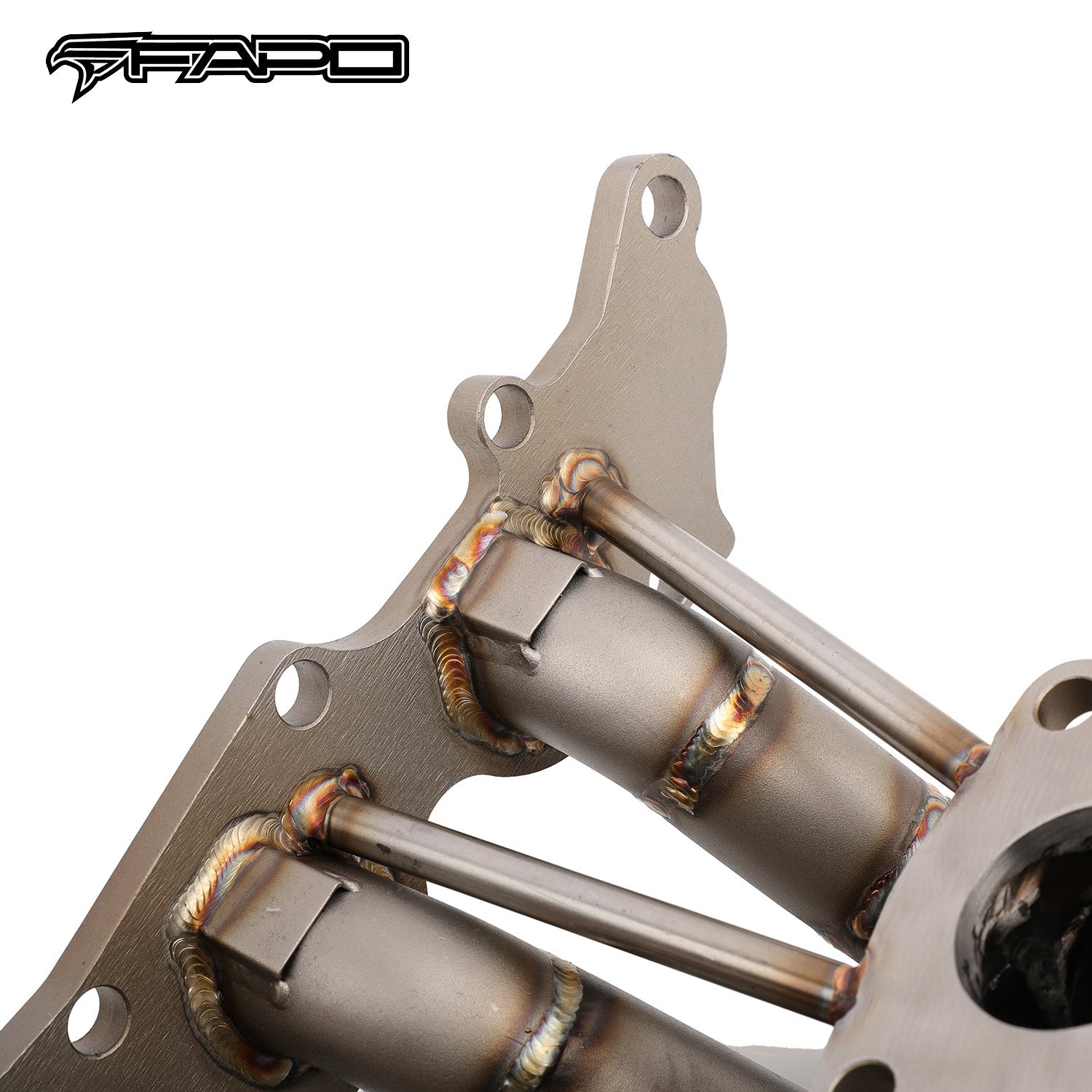

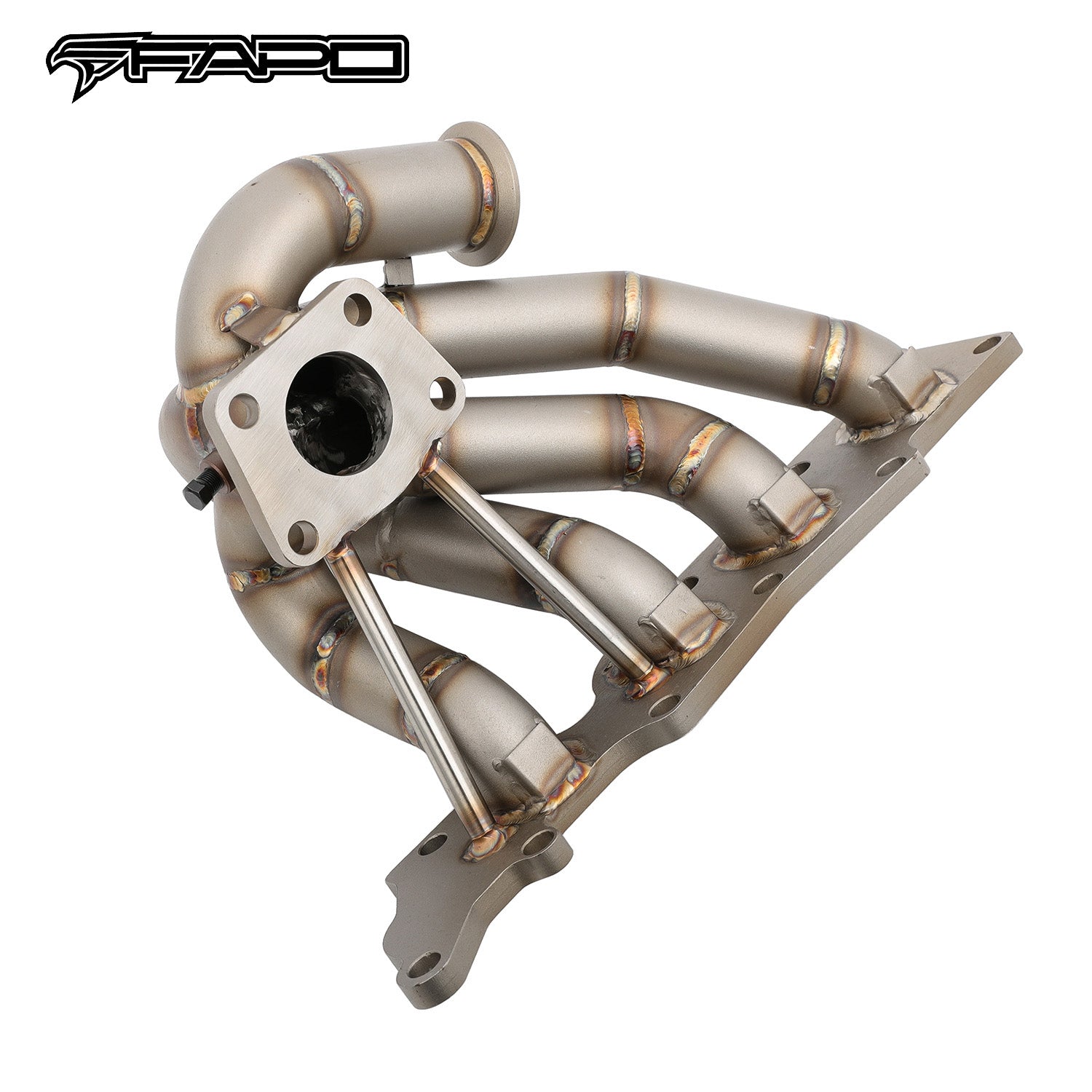

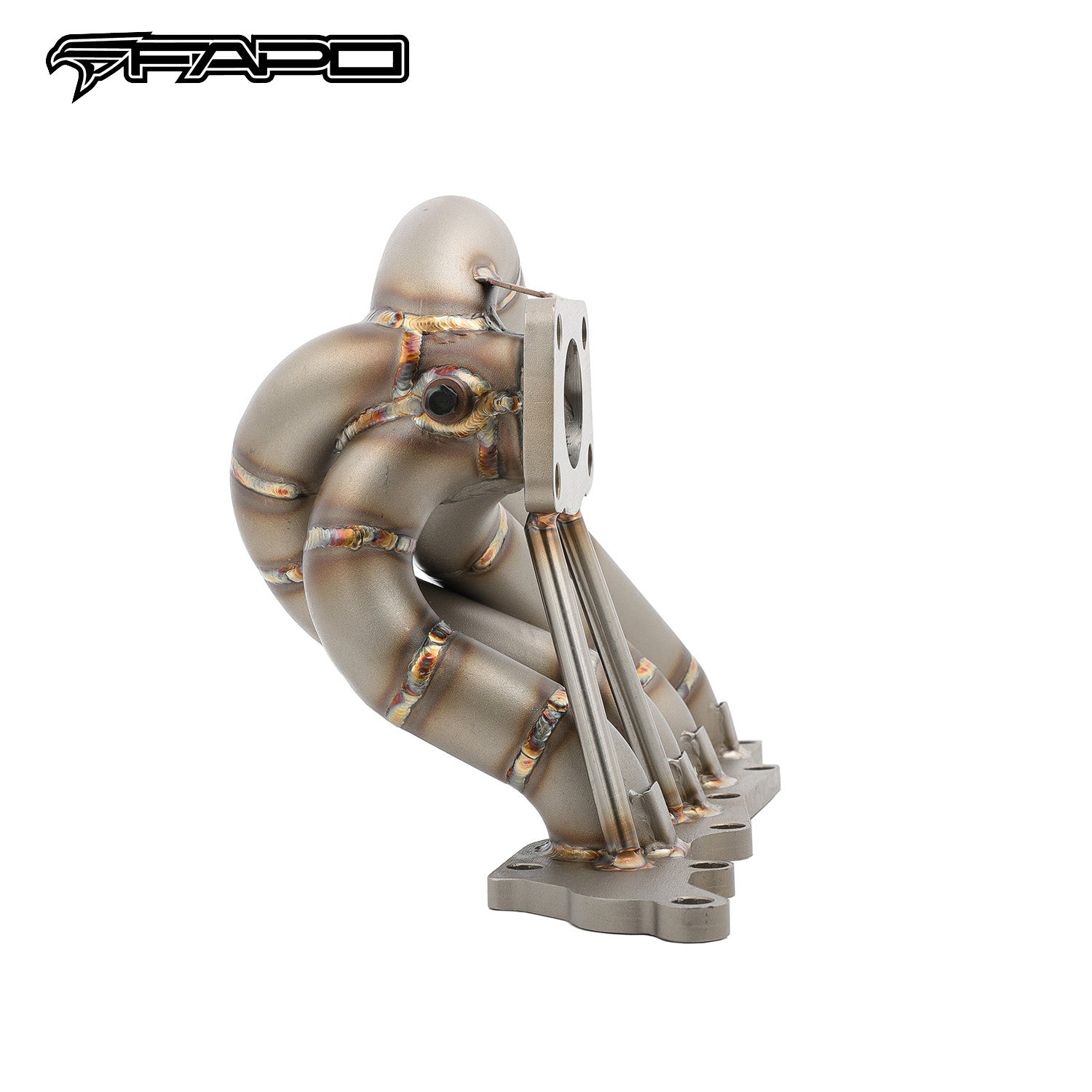

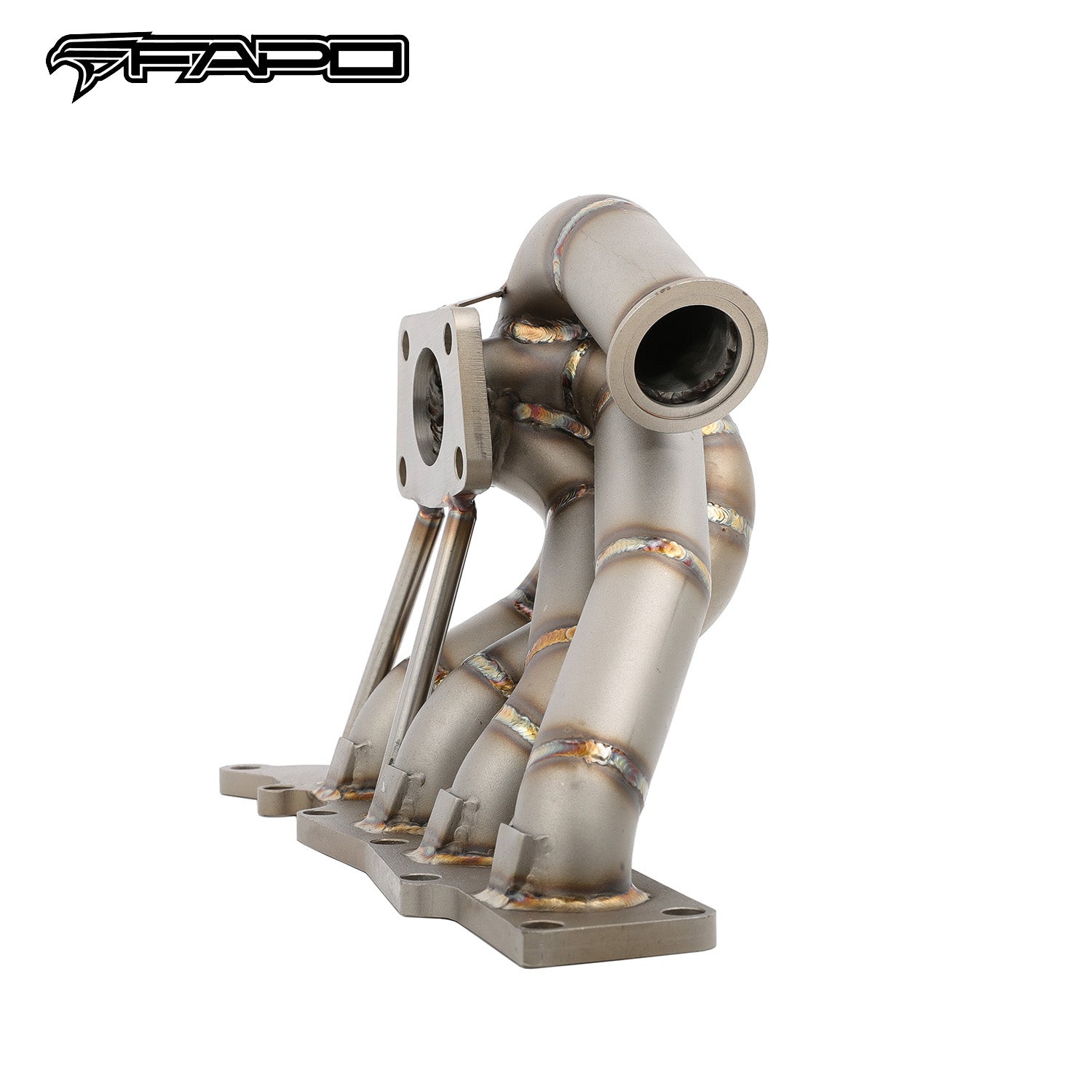

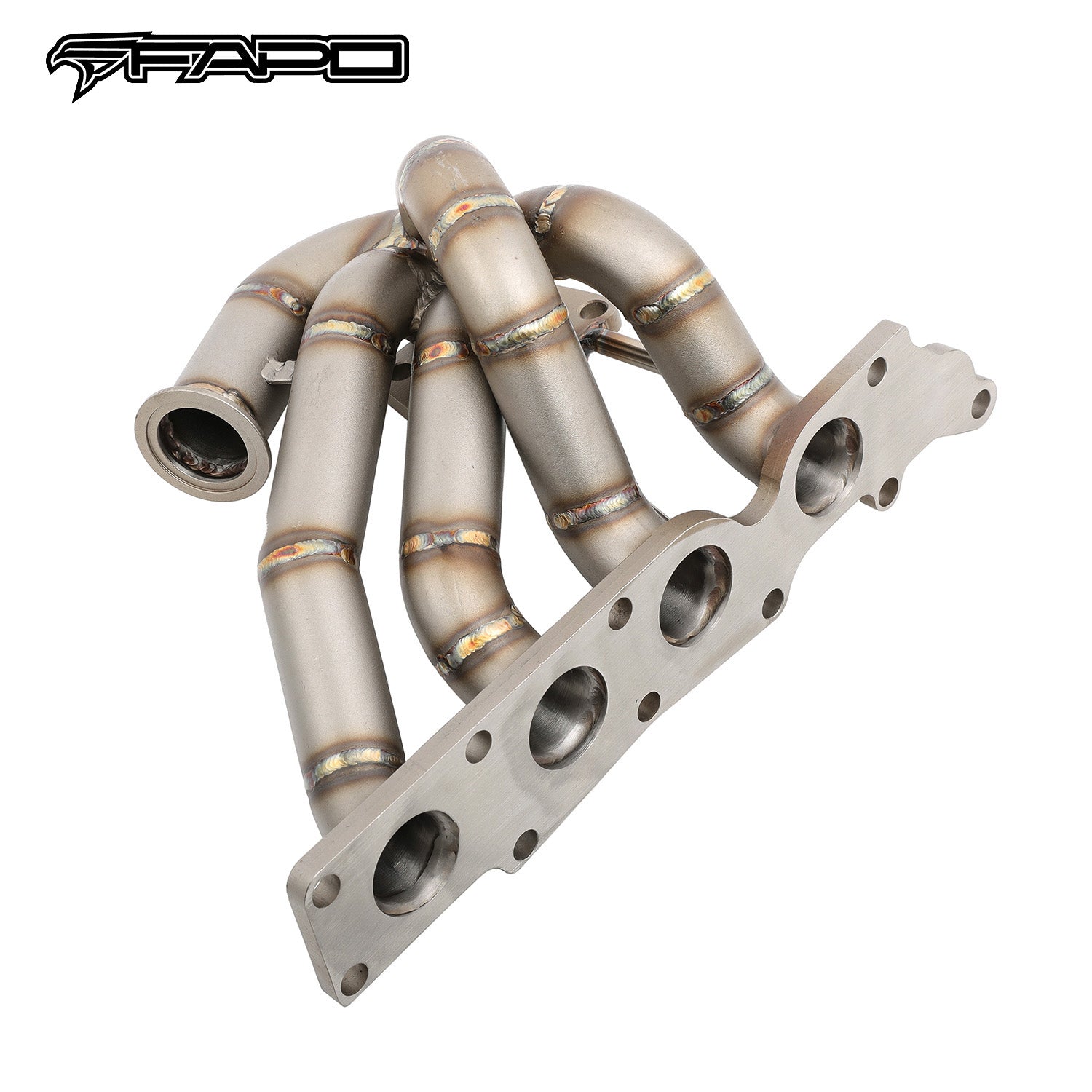

- Engineered for 2.3L MZR DISI turbo engines in Mazdaspeed 3 (2007-2013), Mazdaspeed 6 (2006-2007), and CX-7 (2007-2011), this tubular turbo manifold features an integrated 44mm V-band external wastegate flange for enhanced boost control.
- Equal-length ram-style runner design optimizes exhaust scavenging and reduces reversion, delivering faster turbo spool and improved throttle response.
- 1-3/4 inch (45mm) precision-aligned runners are constructed from Schedule 40 cast 304 stainless steel for superior strength and consistent flow under high thermal load.

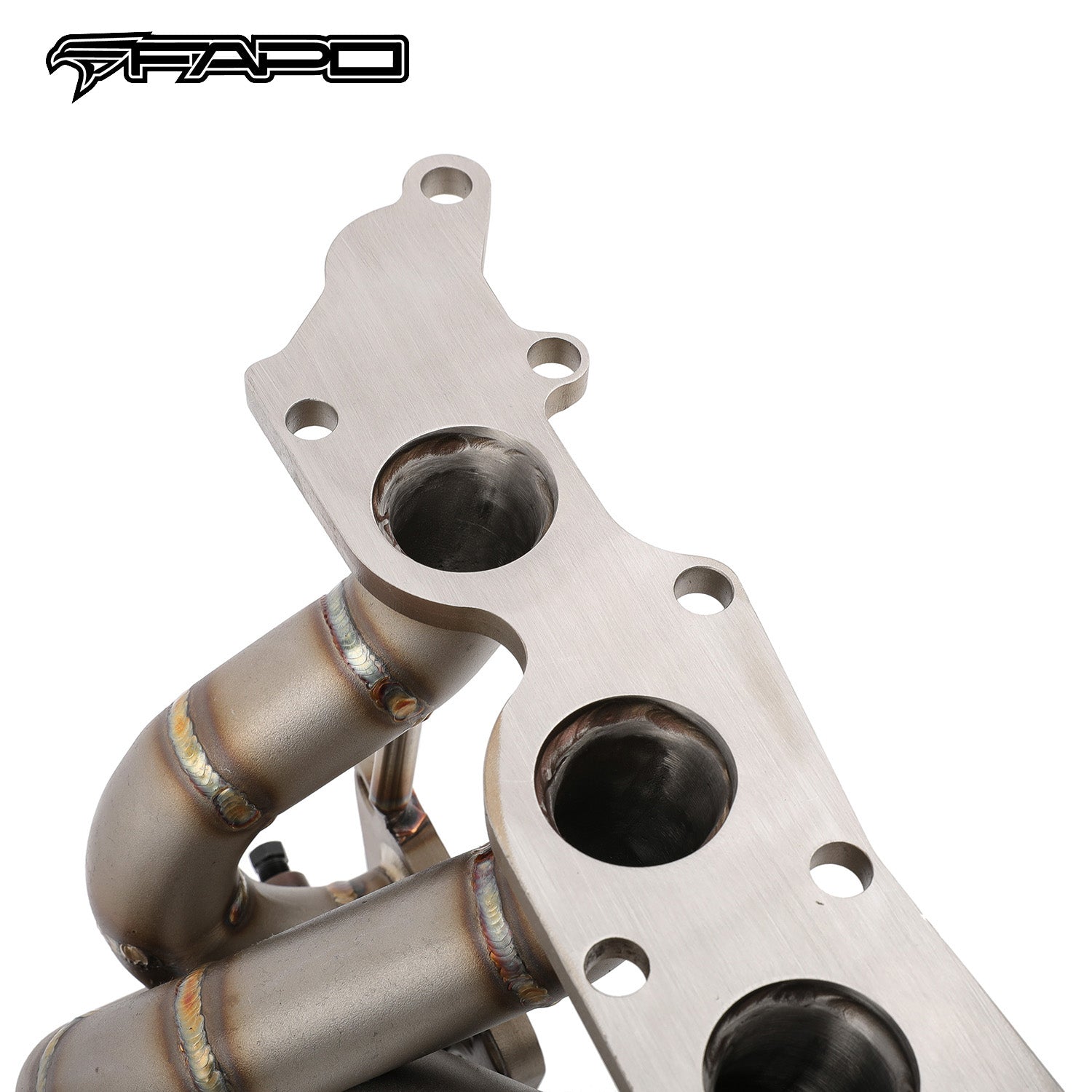

- Laser-cut 1/2 inch (13.5mm) head flange is formed as a single piece and hydraulically pressed flat to ensure leak-free sealing and precise engine alignment.
- Chrome-plated flanges and sandblasted surface finish provide excellent corrosion resistance and increased surface hardness for long-term durability.
- Compatible with K04, T3, and T3/T4 hybrid turbochargers with low-mount configuration, complete with all mounting hardware shown and backed by a 1-year warranty.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Application:
- Mazdaspeed & Mazda 3/6/CX-7 2.3L MZR DISI MPS engine
- 2006-2007 Mazdaspeed 6 2.3 Turbocharged
- 2007-2013 Mazdaspeed 3 2.3 Turbocharged
- 2007-2011 Mazda CX-7 2.3 Turbocharged
Features:
- Fits K04 Turbo Flange and 44 mm Wastegate Flange
- External wastegate port for a 44 mm wastegate, 1-piece head flange design
- Excellent quality and durability to improve vehicle performance
- Ram Style Equal Length Turbo Manifold for faster turbo spool and improved throttle response
- Flat 4-hole engine flanges, precision-shaped for perfect fitment
- Tubular manifold design improves exhaust flow and delivers more top-end power
- Equal length runners for balanced exhaust reversion and enhanced turbo performance
- Precision aligned tubes made of Schedule 40 cast 304 stainless steel
- Head flanges laser-cut from high-quality 1/2 in. thick steel plates
- Flanges flattened by hydraulic press for precise, leak-free sealing
- Golden color TIG brass-style welds to prevent cracking and wear
- Flanges chrome-plated for corrosion resistance
- Sandblasted surface for extra hardness

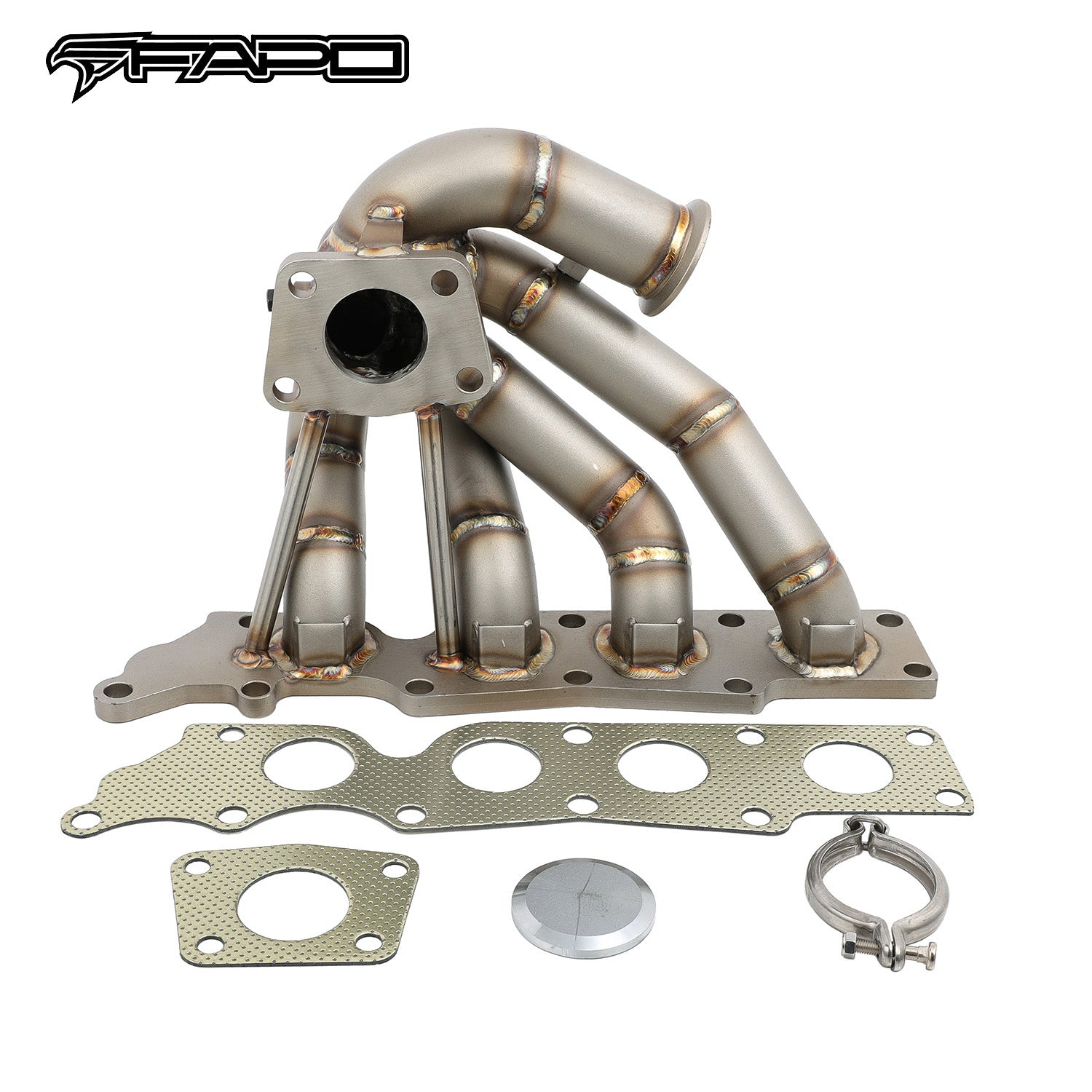

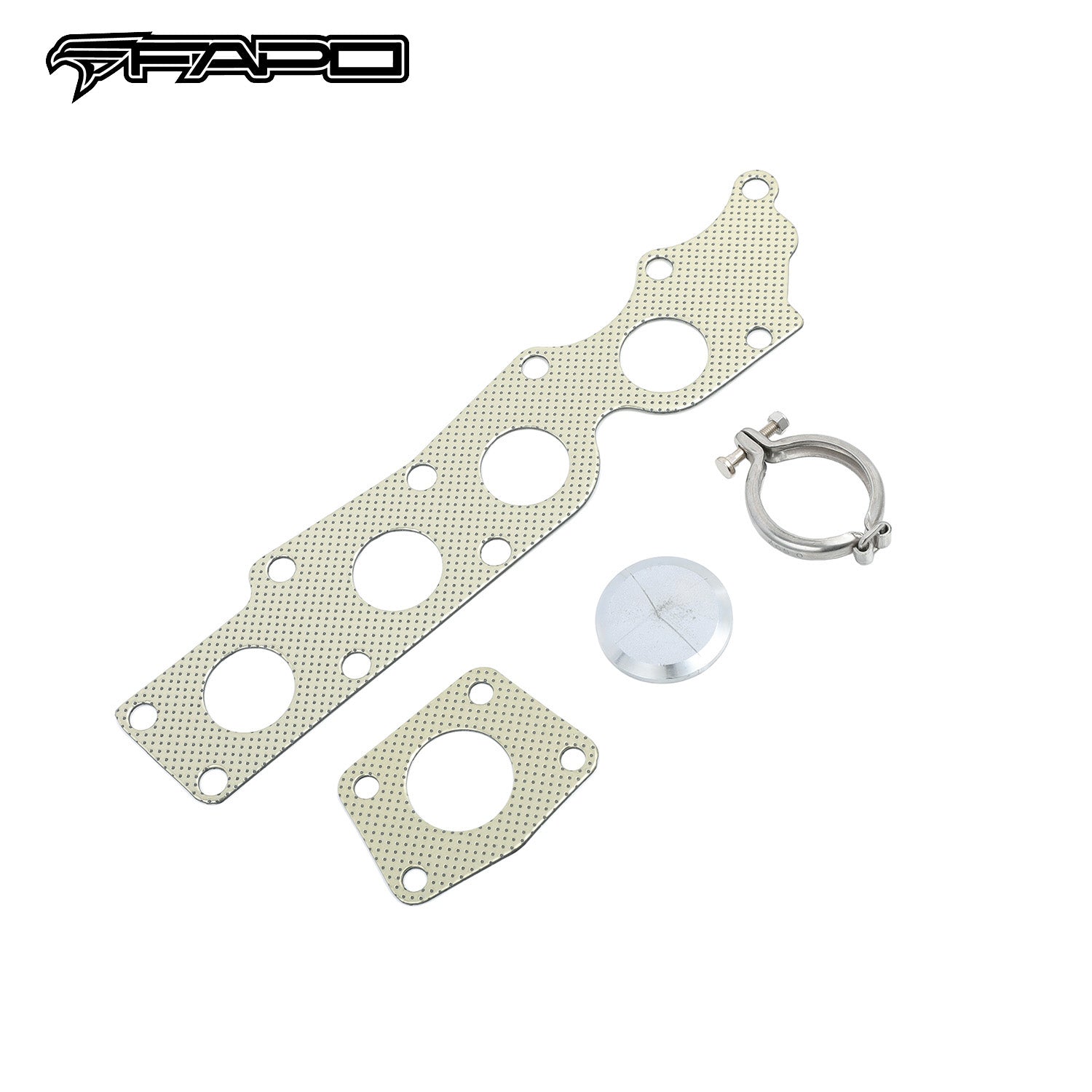

- Accessories shown in photos included
- 1-year warranty for manufacturing defects
Technical Specifications:
- Manifold Type: Tubular Turbo Manifold
- Runner Diameter: 1-3/4 in. (45 mm)
- Runner Layout: Equal Length
- Turbo Fitment: T3, T3/T4 Hybrid
- Turbo Mount Position: Low/Bottom Mount
- Wastegate Fitment: 44 mm (V-band)
- Head Flange Thickness: 1/2 in. (13.5 mm)
- Pipe Thickness: Schedule 40 (3 mm)
- Material: 304 Stainless Steel
- Finish: Sandblasted
Compatibility
| Year | Make | Model |
|---|---|---|
| 2006-2007 | Mazda | Mazdaspeed 6 2.3 turbocharged |
| 2007-2013 | Mazda | Mazdaspeed 3 2.3 turbocharged |
| 2007-2011 | Mazda | CX-7 2.3 turbocharged |
Specs
Brand
FAPO
Manifold Type
Tubular Turbo Manifold
Runner Diameter
1-3/4 in. (45mm)
Runner Layout
Equal Length
Turbo Fitment
T3, T3/T4 Hybrid
Turbo Mount Position
Low/Bottom Mount
Wastegate Fitment
44mm (V-band)
Head Flange Thickness
1/2 in. (13.5mm)
Pipe Thickness
Schedule 40 (3mm)
Material
304 Stainless Steel
Finish
Sandblasted
Warranty
1 Year
