FEATURES:
- Designed for 2.3L turbo inline-4 engines in Ford Mustang SVO (1984-1986), Thunderbird (1983-1988), Mercury Cougar XR-7 (1984-1986), and Merkur XR4Ti (1985-1989), this tubular manifold upgrades exhaust efficiency with a top-mount T3 configuration.
- Equal-length ram-style runner design enhances exhaust scavenging and reduces reversion for faster turbo spool, improved throttle response, and increased top-end power.
- 1-5/8 inch (42mm) runners made from 16-gauge 304 stainless steel are precision aligned and TIG welded with brass filler for durability under high thermal cycling.
- Laser-cut 7/16 inch (11.5mm) head flange is hydraulically pressed flat to ensure precise fitment and leak-free sealing on the cylinder head.
- Features a T3/T3-T4 hybrid turbo flange and 38mm 2-bolt wastegate port, with turbo relocated to a top-mount position for easier service and clearance.
- Polished 304 stainless steel finish and chrome-plated flanges provide excellent corrosion resistance; complete with all mounting hardware shown; 1-year warranty included.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Application:
- 1984-1986 Ford Mustang SVO 2.3L 140 Cu. In. I4 GAS SOHC Turbocharged
- 1983-1988 Ford Thunderbird 2.3L 140 Cu. In. I4 GAS SOHC Turbocharged
- 1984-1986 Mercury Cougar XR-7 2.3L 140 Cu. In. I4 GAS SOHC Turbocharged
- 1985-1989 Merkur XR4Ti 2.3L 140 Cu. In. I4 GAS SOHC Turbocharged
Note: NOT a direct replacement to OE manifold. Changes location of the turbo.
Features:

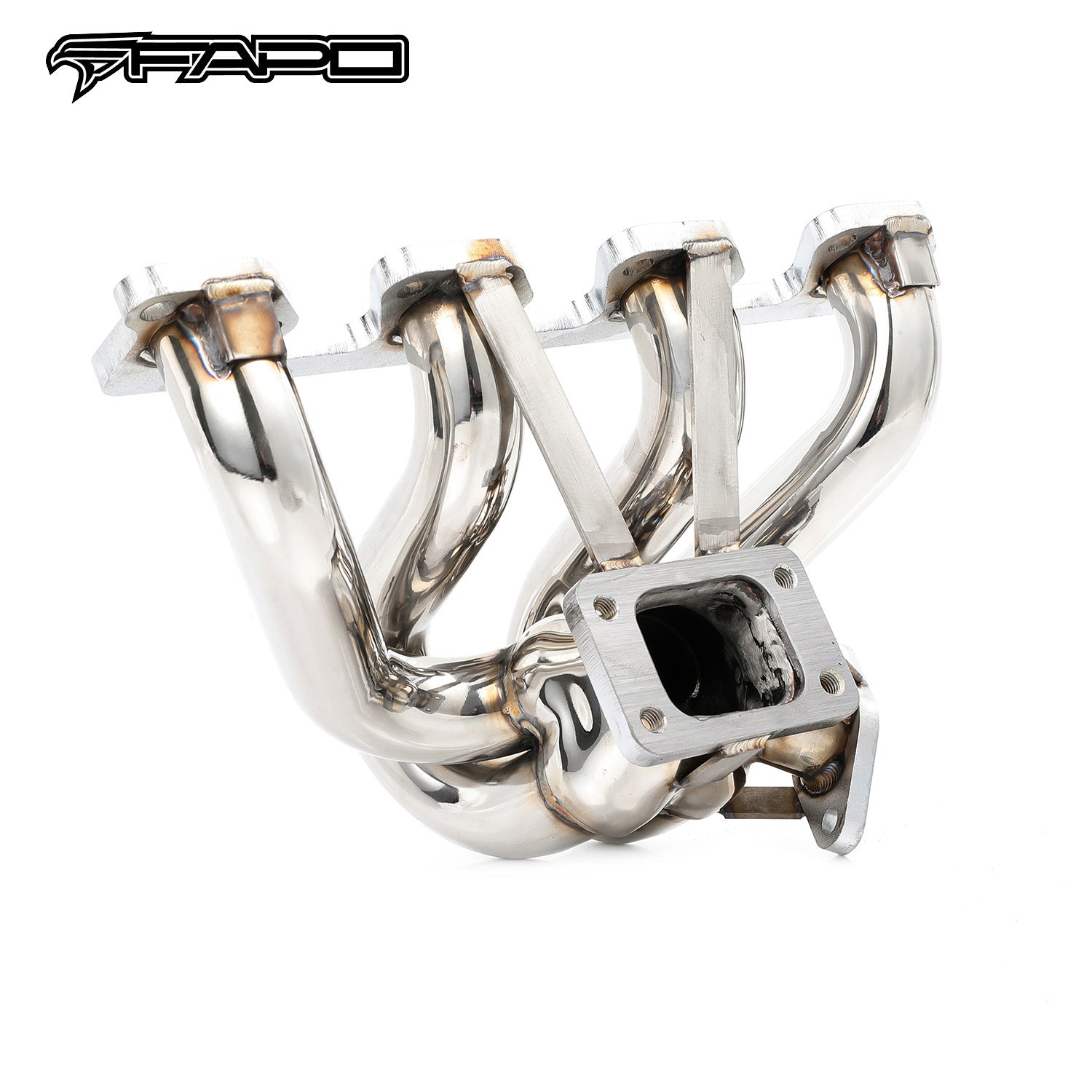

- Fits T3, T3/T4 Hybrid Turbo Flange and 38mm (2-bolt) Wastegate Flange
- Compatible with stock Garrett T3 turbo, T3/T4 hybrid turbo, and 87-88 IHI turbo
- Changes turbo position to top mount for easy removal and installation
- Flat 4-hole engine flanges, precisely shaped for better installation
- Excellent durability and performance; engineered as a bolt-on upgrade
- Ram style equal length turbo manifold for faster spool and throttle response
- Tubular design improves exhaust flow and top-end power
- Equal length runners for balanced exhaust reversion and turbo efficiency
- Precision aligned tubes, 16-gauge 304 stainless steel

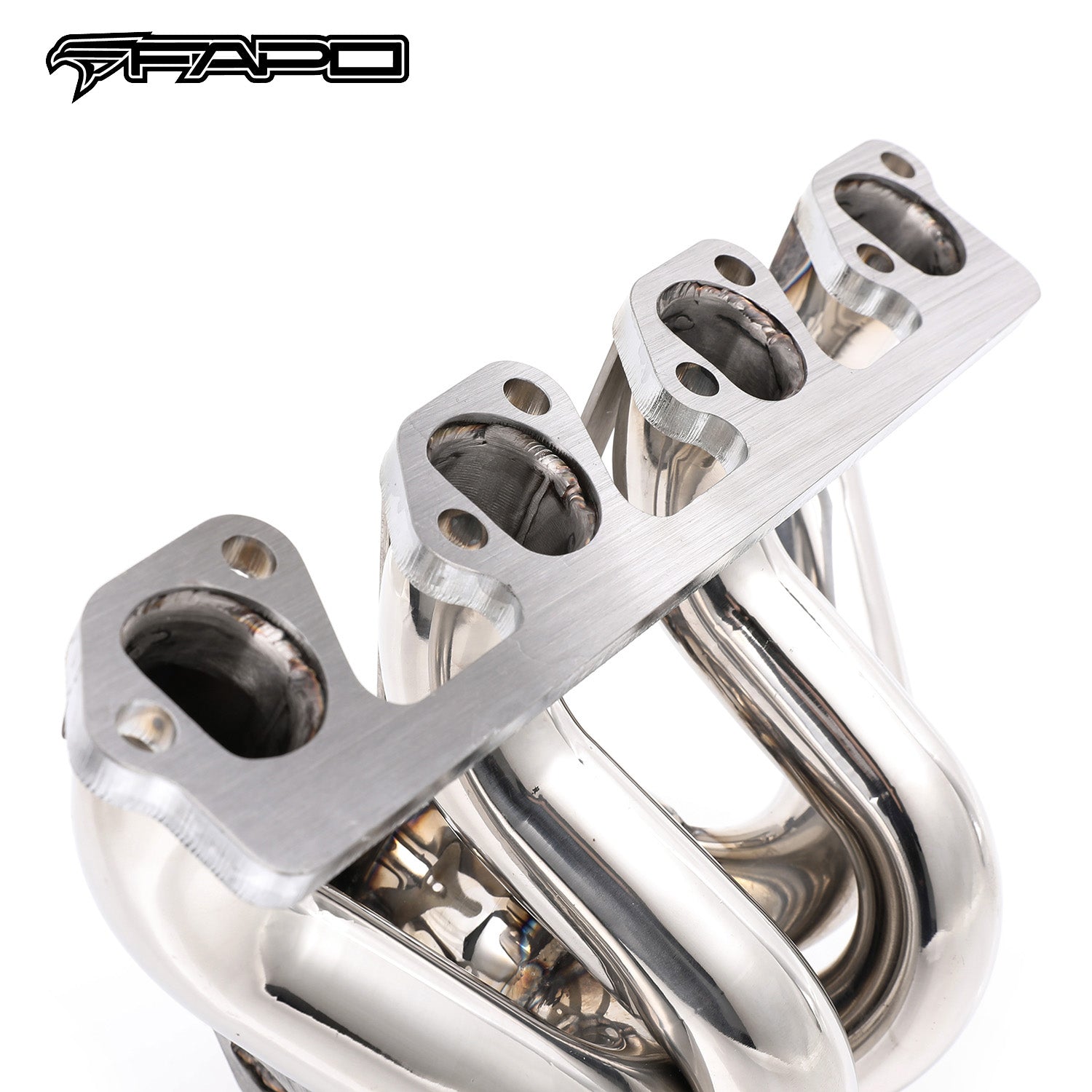

- Laser-cut head flanges, 7/16 in. (11.5mm) thick steel plates
- Hydraulic press flattened flange for precise, leak-free sealing

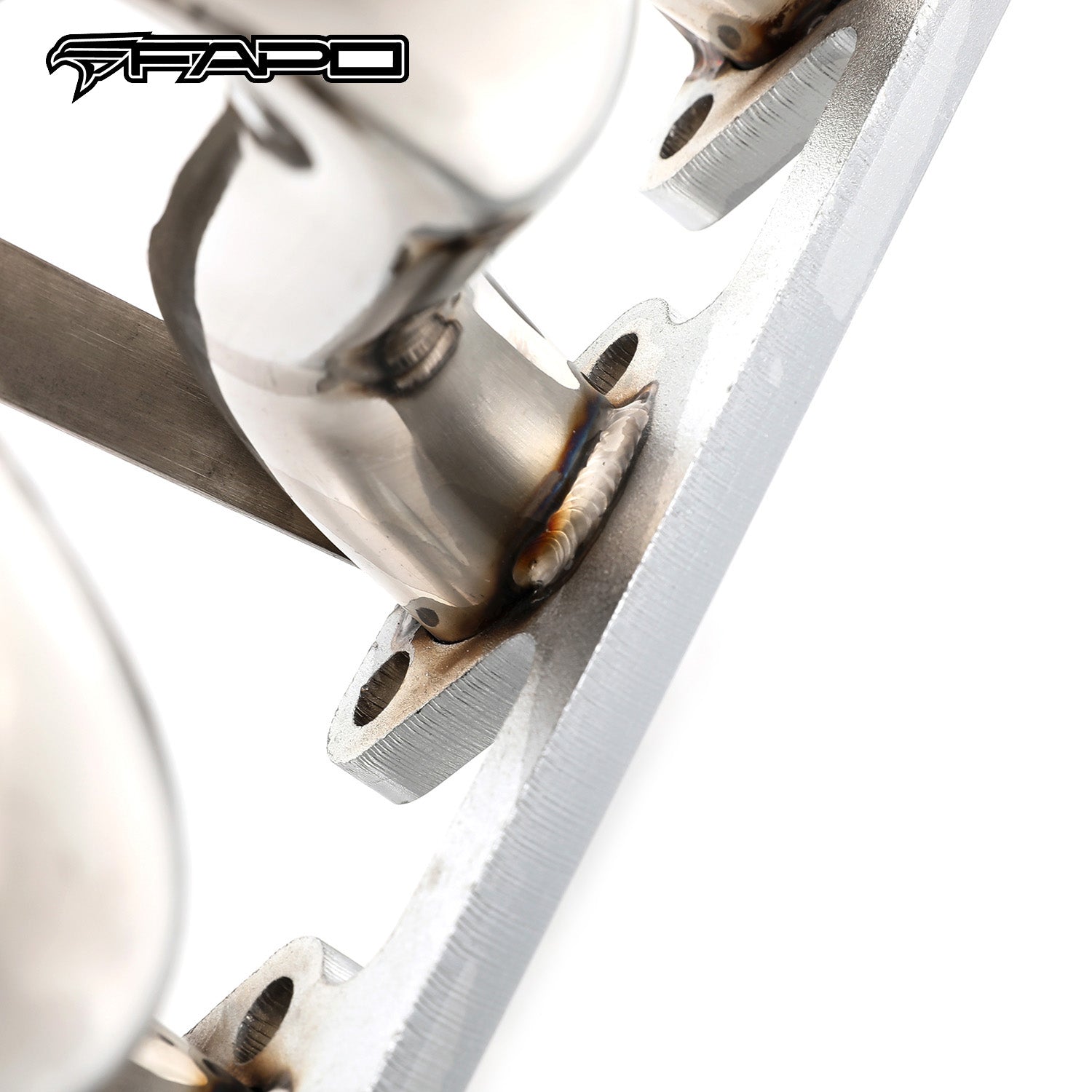

- Golden color TIG brass style welds to prevent cracking and wear
- Chrome-plated flanges for corrosion resistance
- Polished surface for rust protection

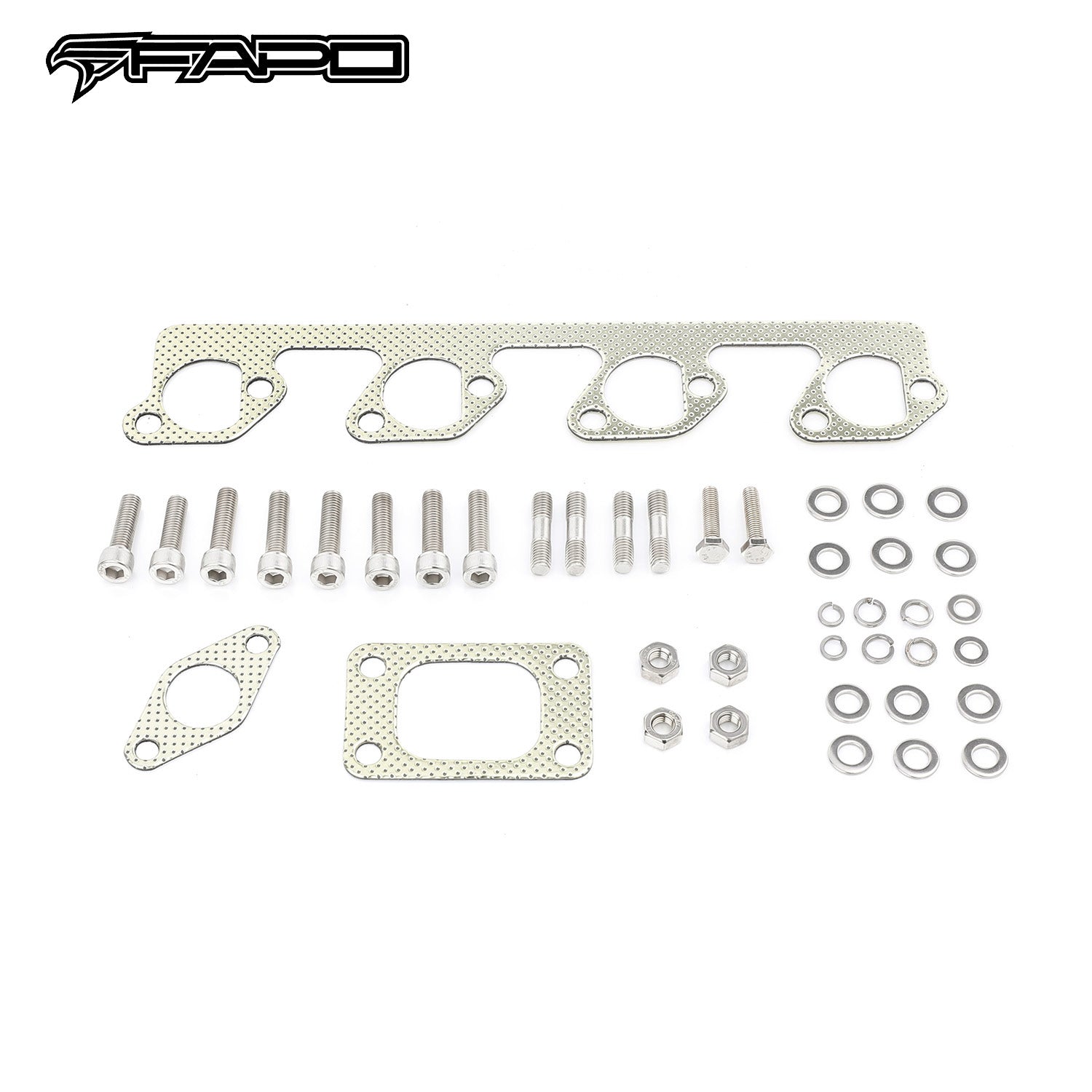

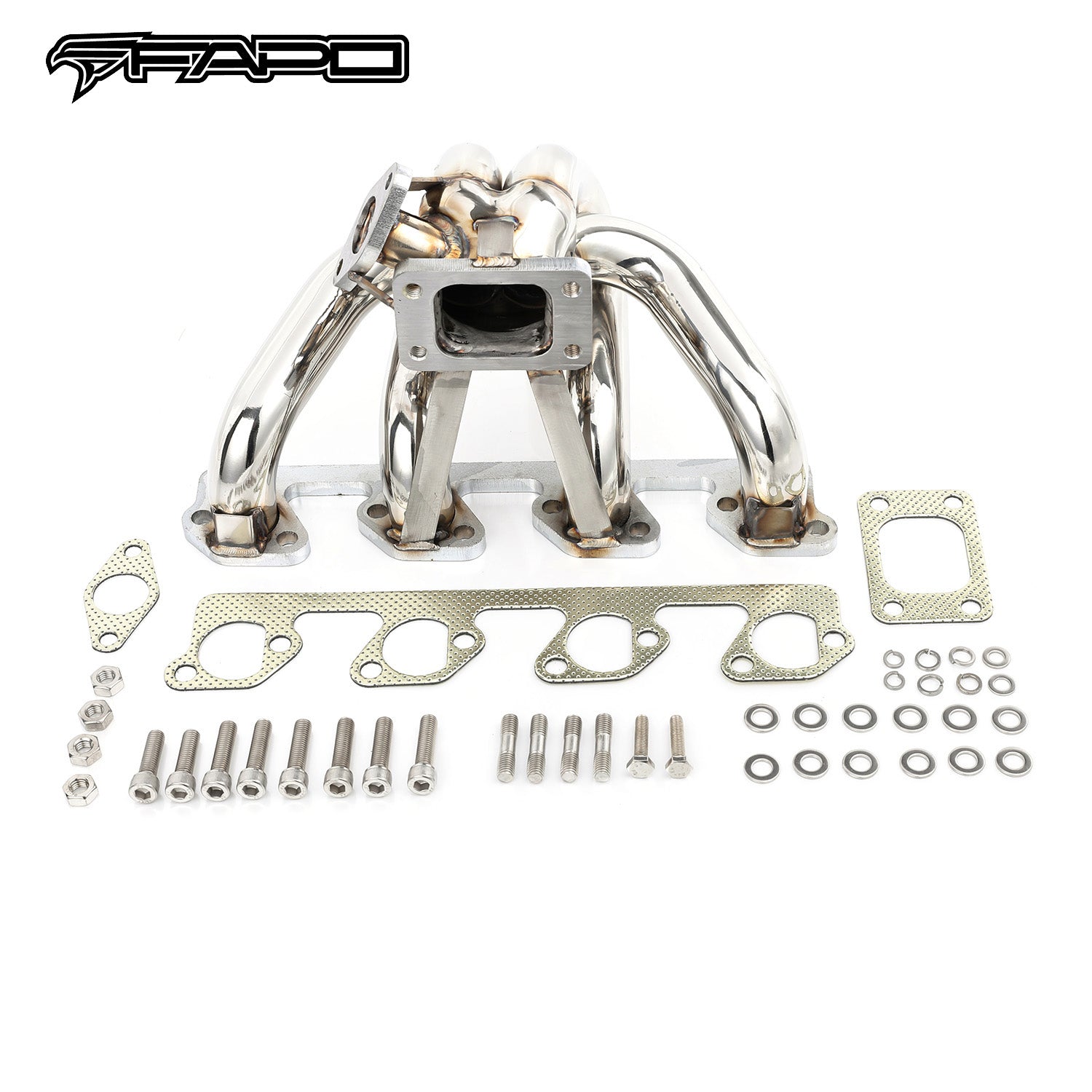

- Accessories shown in photos included
- 1-year warranty against manufacturing defects
- No installation instructions provided; professional installation recommended
Technical Specifications:
- Manifold Type: Tubular Turbo Manifold
- Runner Diameter: 1-5/8 in. (42mm)
- Runner Layout: Equal Length
- Turbo Fitment: T3, T3/T4 Hybrid
- Turbo Mount Position: Top Mount
- Wastegate Fitment: 38mm (2-bolt)
- Head Flange Thickness: 7/16 in. (11.5mm)
- Pipe Thickness: 16 gauge (1.5mm)
- Material: 304 Stainless Steel
- Finish: Polished
Compatibility
| Year | Make | Model |
|---|---|---|
| 1984-1986 | Ford | Mustang SVO with 2.3L 140Cu. In. l4 GAS SOHC Turbocharged |
| 1983-1988 | Ford | Thunderbird with 2.3L 140Cu. In. l4 GAS SOHC Turbocharged |
| 1984-1986 | Mercury | Cougar XR-7 with 2.3L 140Cu. In. l4 GAS SOHC Turbocharged |
| 1985-1989 | Merkur | XR4Ti with 2.3L 140Cu. In. l4 GAS SOHC Turbocharged |
Specs
Brand
FAPO
Manifold Type
Tubular Turbo Manifold
Runner Diameter
1-5/8 in. (42mm)
Runner Layout
Equal Length
Turbo Fitment
T3, T3/T4 Hybrid
Turbo Mount Position
Top Mount
Wastegate Fitment
38mm (2-bolt)
Head Flange Thickness
7/16 in. (11.5mm)
Pipe Thickness
16 gauge (1.5mm)
Material
304 Stainless Steel
Finish
Polished
Warranty
1 Year
