FEATURES:

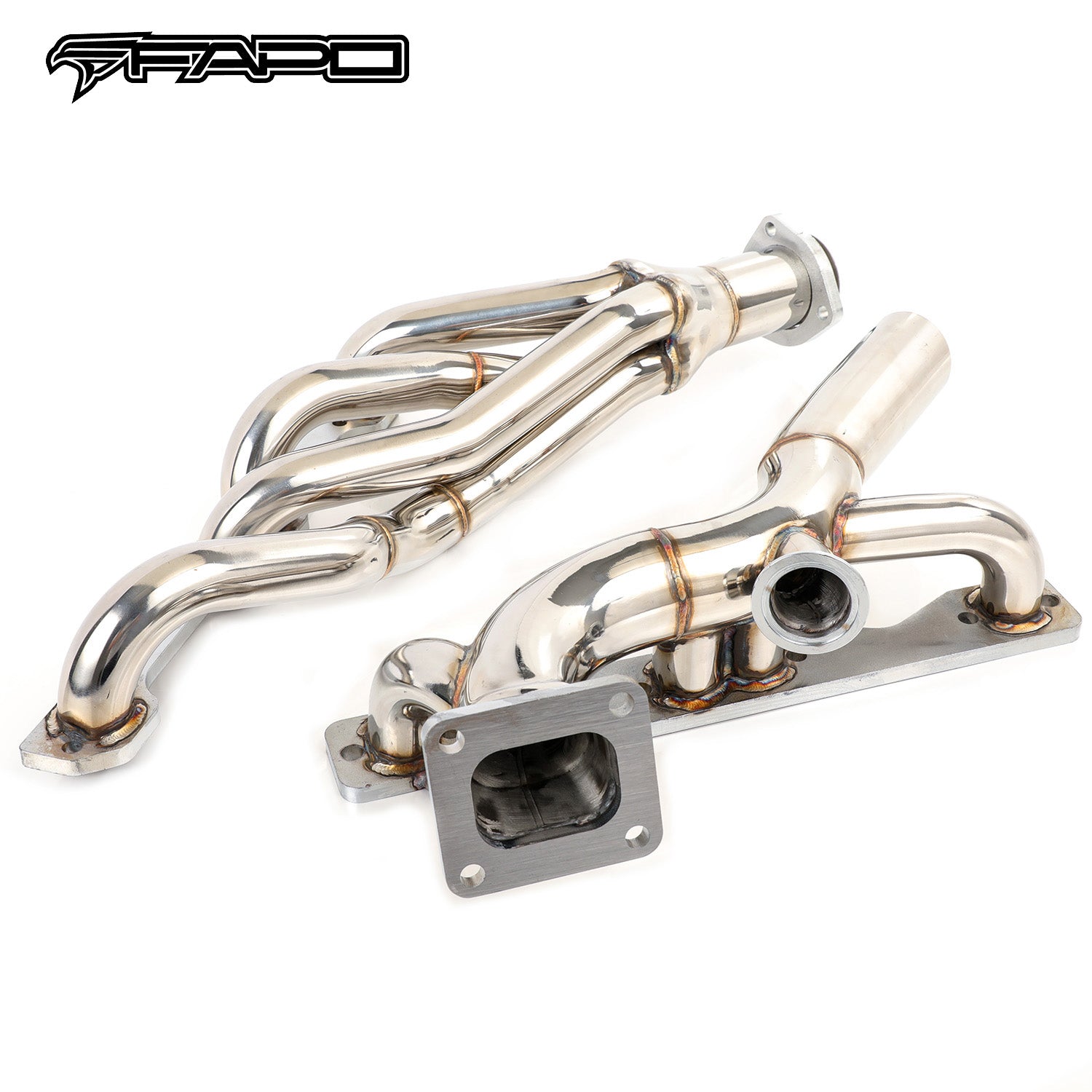

- Designed for custom single turbo builds on small block V8 engines from 265 to 400 cubic inches, including applications in classic Chevys and 1988-1998 GM trucks and SUVs.

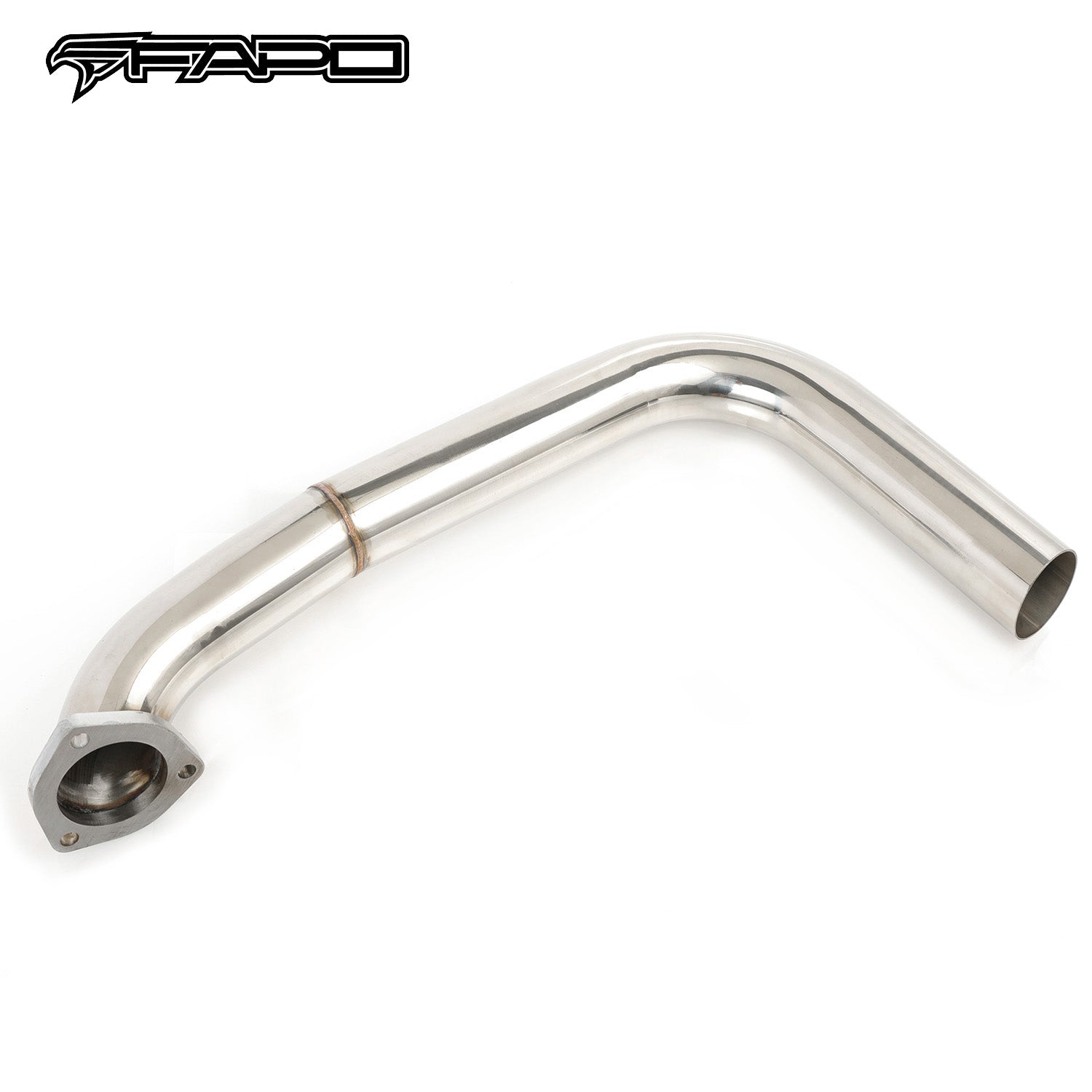

- Features a top-mount T4 turbo configuration with integrated 2-1/2 in crossover pipe (Version II upgraded) for efficient exhaust routing and improved turbo response.

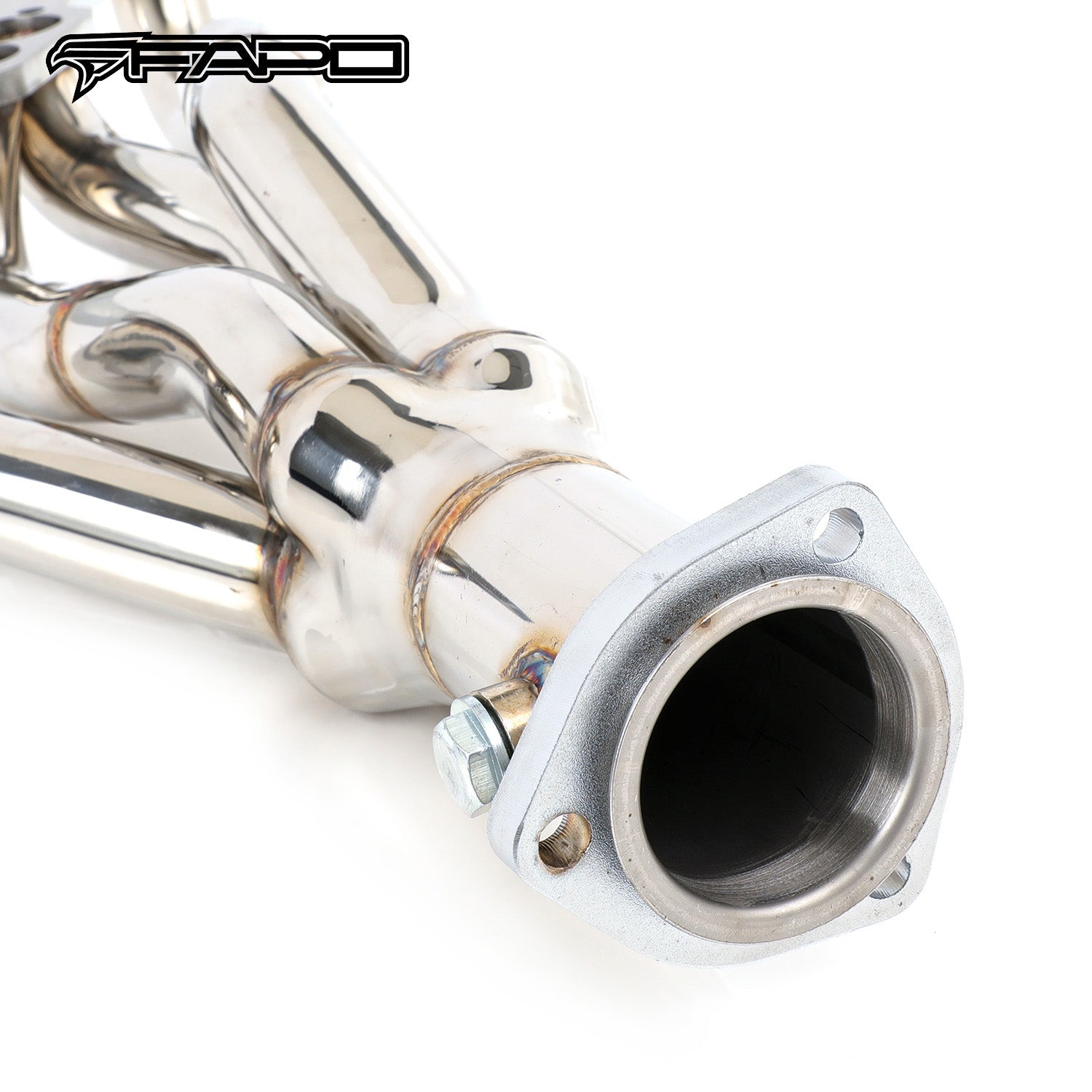

- 1-5/8 in primary tubes and 2-1/2 in collector are fully mandrel bent from 16-gauge 304 stainless steel to maintain consistent flow and reduce backpressure.

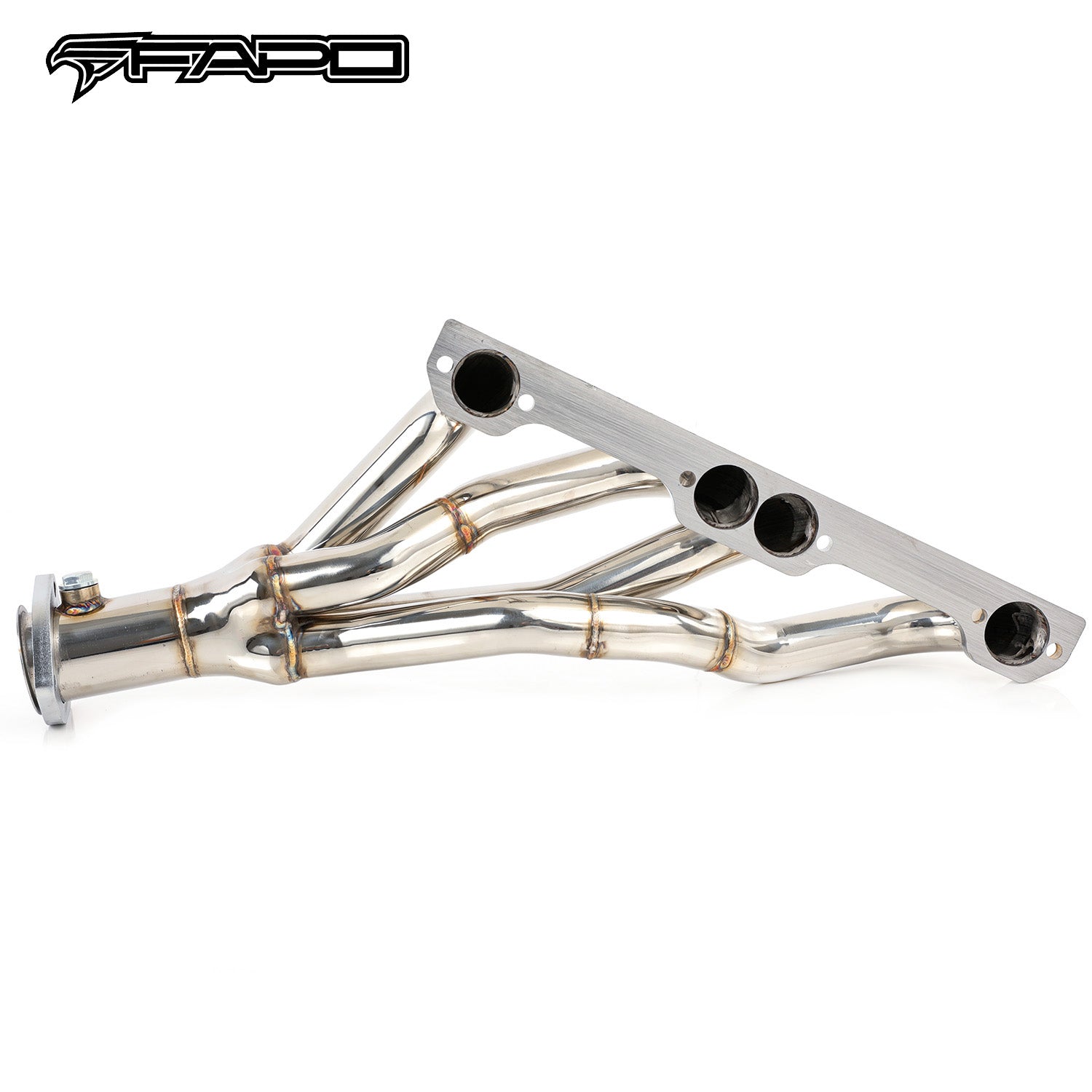

- Laser-cut 7/16 in head flanges are hydraulically flattened to ensure precise sealing and long-term leak-free performance under high thermal load.
- Chrome-plated flanges and polished 304 stainless finish provide excellent corrosion resistance and a show-quality appearance under the hood.
- All critical joints are TIG welded with brass filler in a golden finish, enhancing strength and resistance to cracking from thermal cycling.
- Integrated 44 mm wastegate flange supports reliable boost control in high-performance single turbo setups.
- Engineered as a universal fit for F/A/G/B/X-body vehicles and classic GM platforms, requires custom fabrication; includes all mounting hardware shown and is backed by a 1-year warranty.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Application:
- For 1988-1998 Chevy/GMC trucks & SUVs
- For 265-400 small block V8 engine with single turbo conversion
- For F/A/G/B/X-body cars
- For turbo setup; NOT direct fit
Features:
- Top mount T4 single top mount with Crossover Pipe, Version II UPGRADED, 304 Stainless Steel, single T4 turbo headers with 44mm flange
- Excellent quality and durability to improve vehicle performance
- Shorty design for power gain from idle to mid-range RPM
- Fully mandrel bent tubes made of high quality 16-gauge 304 stainless steel
- Head flanges laser-cut from high quality 7/16-inch thick steel plates
- The flange is flattened by a hydraulic press for precise and leak-free sealing
- All joints are golden color TIG brass style welded to prevent cracking and wear
- Flanges chrome plated for corrosion resistance
- Polished surface for extra protection against rusting

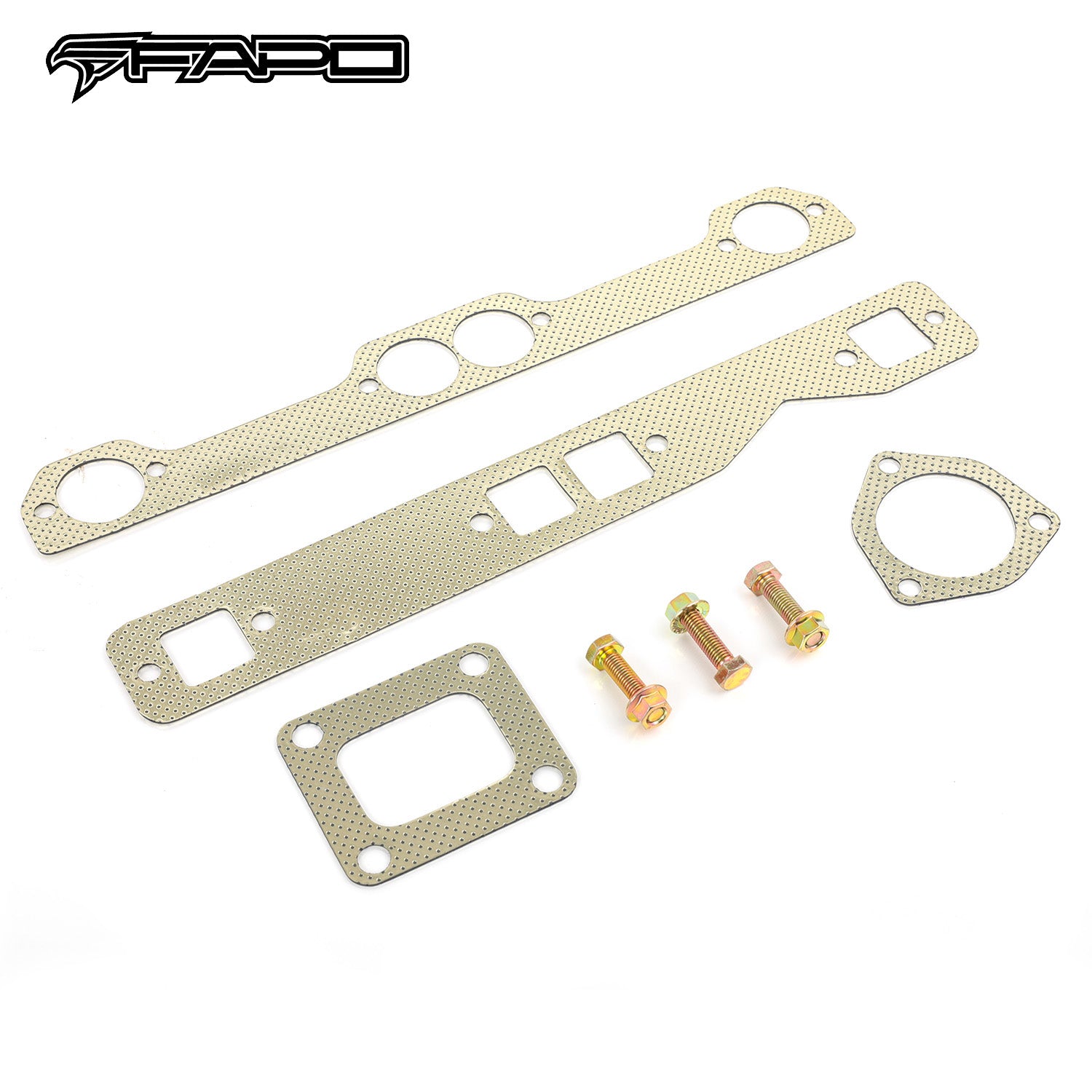

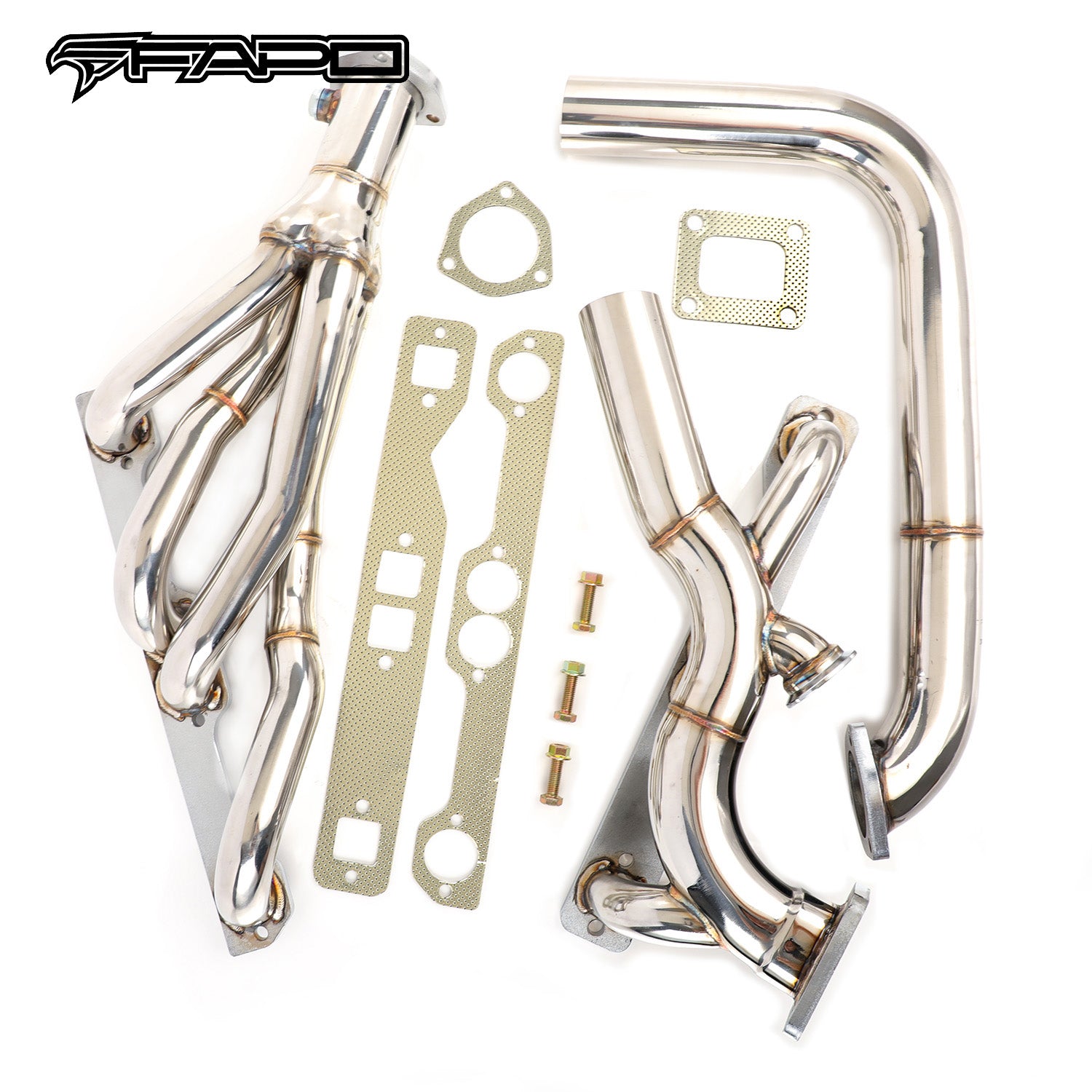

- The accessories in the photos are included
- 1 year warranty for any manufacturing defect
Technical Specifications:
- Header Type: Turbo
- Primary Diameter: 1-5/8 in. (42 mm)
- Collector Diameter: 2-1/2 in. (64 mm)
- Crossover Pipe Diameter: 2-1/2 in. (64 mm)
- Turbo Fitment: T4
- Wastegate Fitment: 44 mm
- Head Flange Thickness: 7/16 in. (11.5 mm)
- Pipe Thickness: 16 gauge (1.5 mm)
- Material: 304 Stainless Steel
- Finish: Polished
Compatibility
| Year | Make | Model |
|---|---|---|
| 1988-1998 | Chevy/GMC | trucks & SUVs (For 265-400 small block V8 engine with single turbo conversion, F/A/G/B/X-body cars; turbo setup, NOT direct fit) |
Specs
Brand
FAPO
Header Type
Turbo
Primary Diameter
1-5/8 in. (42 mm)
Collector Diameter
2-1/2 in. (64 mm)
Crossover Pipe Diameter
2-1/2 in. (64 mm)
Turbo Fitment
T4
Wastegate Fitment
44 mm
Head Flange Thickness
7/16 in. (11.5 mm)
Pipe Thickness
16 gauge (1.5 mm)
Material
304 Stainless Steel
Finish
Polished
Warranty
1 Year
