FEATURES:
- Engineered for high-horsepower N54 platforms, including 135i, 535i, Z4, X6, and 740i, these upgraded twin turbos support reliable power output up to 950HP with proper tuning and supporting modifications.

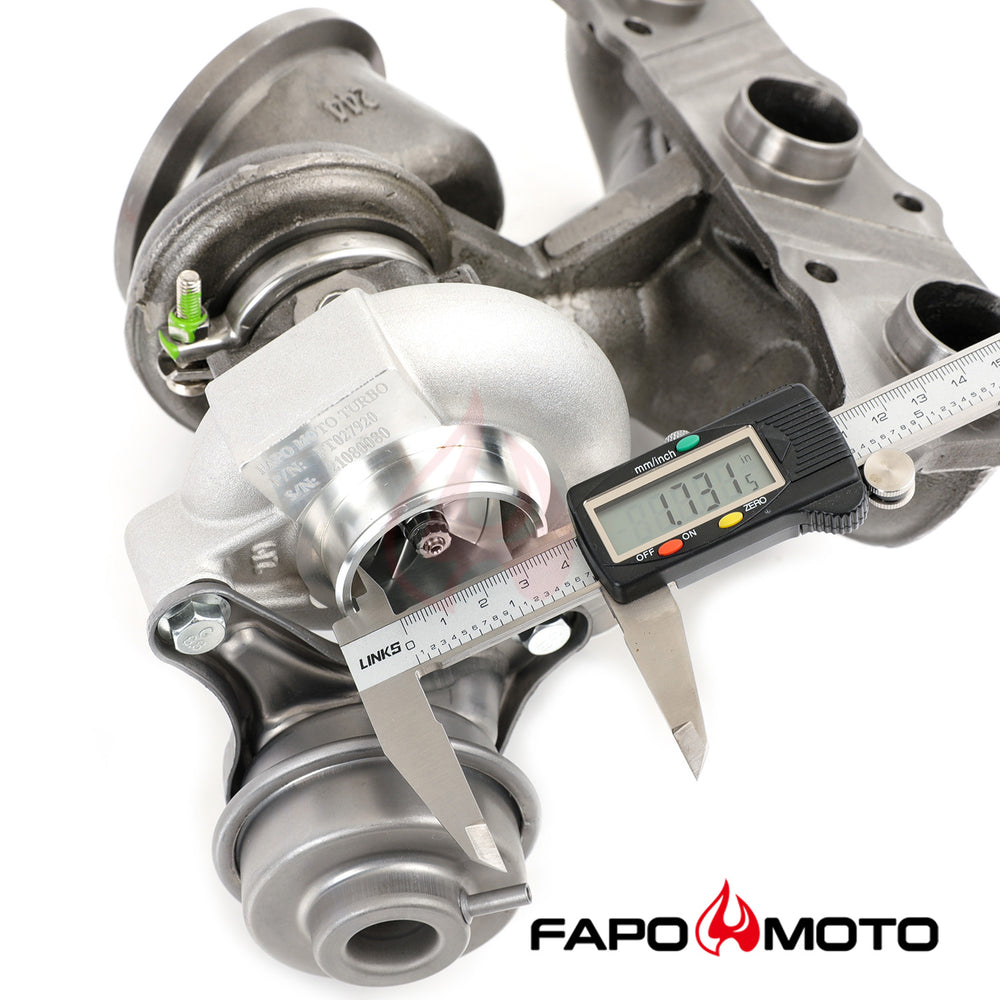

- Features a 19T-compatible flow profile with an upgraded forged billet compressor wheel (45.1×58 mm, 12-blade) for significantly increased airflow and improved spool efficiency over stock TD04 units.
- Precision 9-blade turbine wheel (41.2×47.2 mm) and housing are optimized for high exhaust energy transfer while maintaining durability under extreme boost conditions.
- All rotating assemblies undergo VSR high-speed dynamic balancing to an average of 0.5 mg or less, ensuring smooth, vibration-free operation at peak RPM.
- Upgraded billet stainless steel wastegate flapper valves with thicker control rods deliver enhanced resistance to fatigue and more consistent boost control.
- Direct-fit replacement for OEM turbo models 49131-07xxx and 1165xxxxxxx series, includes all mounting hardware shown and is backed by a 1-year warranty.
Guaranteed Fit
We guarantee that all parts will fit your vehicle perfectly
Up to 2-Year Warranty Protection
30-Day easy return. Lifetime technical support. Learn More>>
Ways To Pay
Description
Application:
- BMW 135i (E82/E88) N54B30 3.0L Turbo, 2008-2010
- BMW 535i / 535ix (E60/E61) N54B30 3.0L Turbo, 2008-2010
- BMW Z4 sDrive35i / sDrive35is (E89) N54B30 3.0L Turbo, 2009-2016
- BMW X6 xDrive35i (F71) N54B30 3.0L Turbo, 2008-2010
- BMW 740i / 740Li (F01/F02) N54B30 3.0L Turbo, 2010-2012
Will NOT fit 335i
Features:
- 19T design with upgraded forged billet compressor wheel, comparable in flow to a 19T turbo
- Enhances vehicle performance and engine power, capable of handling up to 950HP
- Component balanced, dynamically balanced more precisely than VSR HIGH SPEED using state-of-the-art balancing machine, avg 0.5 mg or less
- Billet wastegate flapper valves (stainless steel with thicker rod)

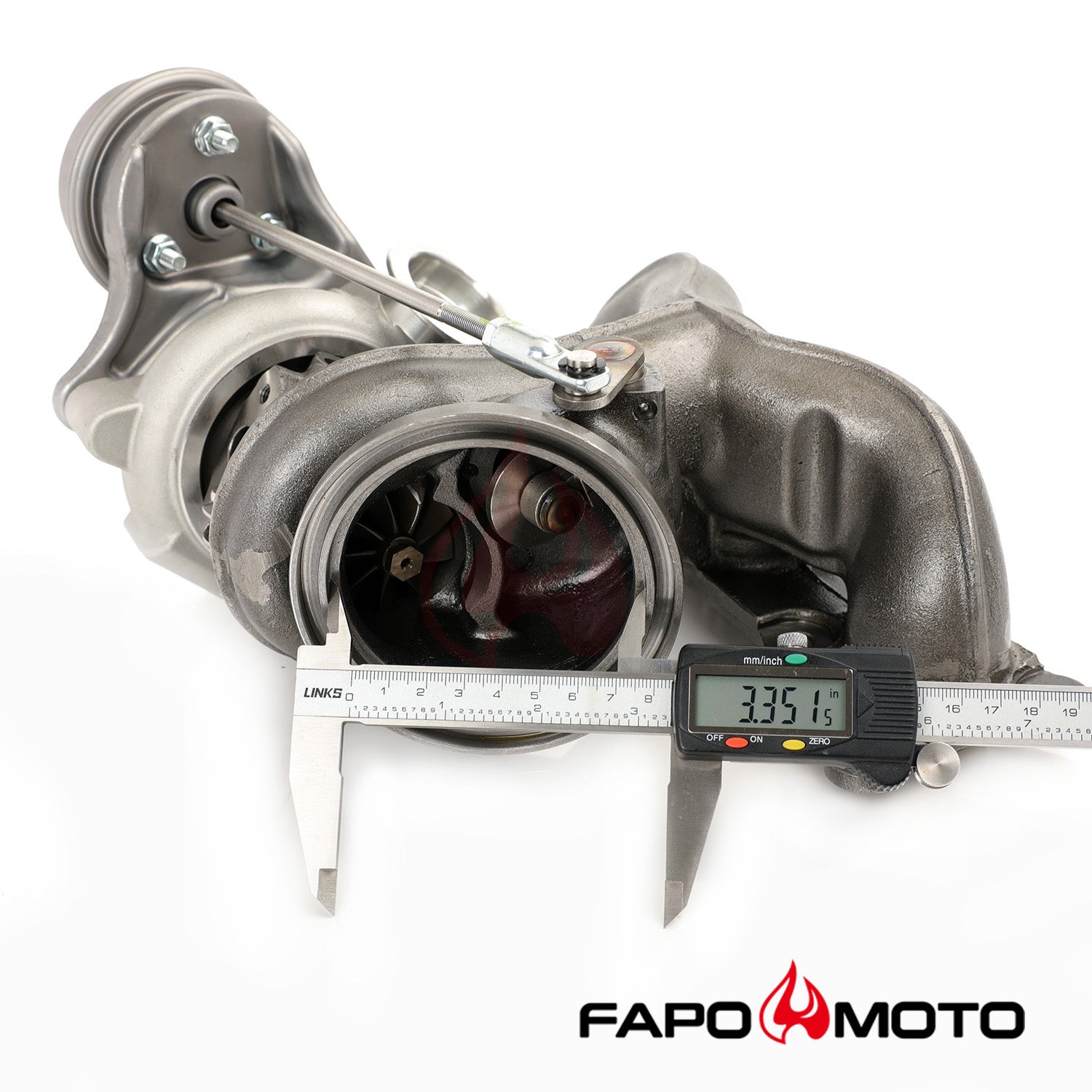

- Some modifications required for installation due to larger compressor housing inlet
- 2 inch (55mm) intake hose needed to match larger inlet

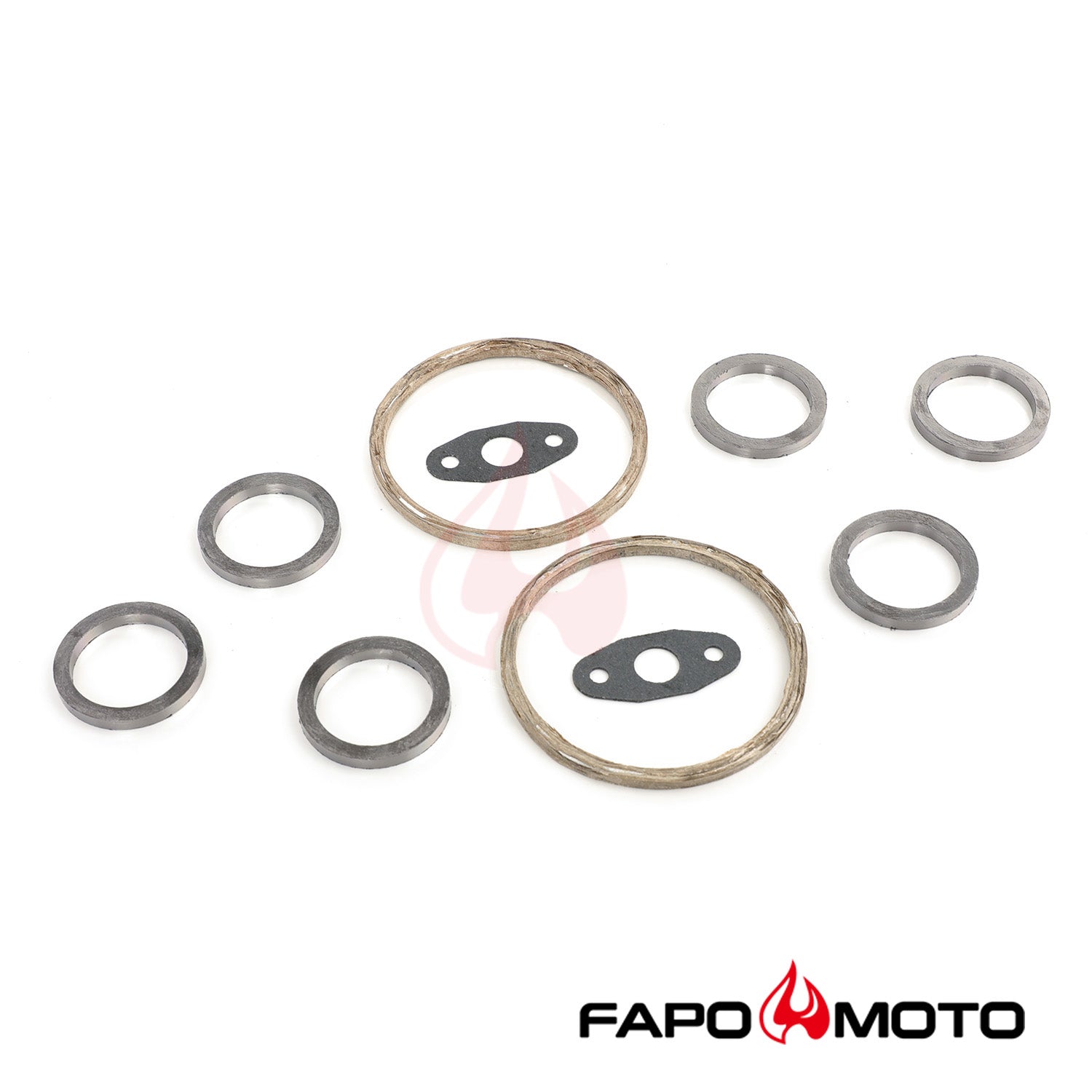

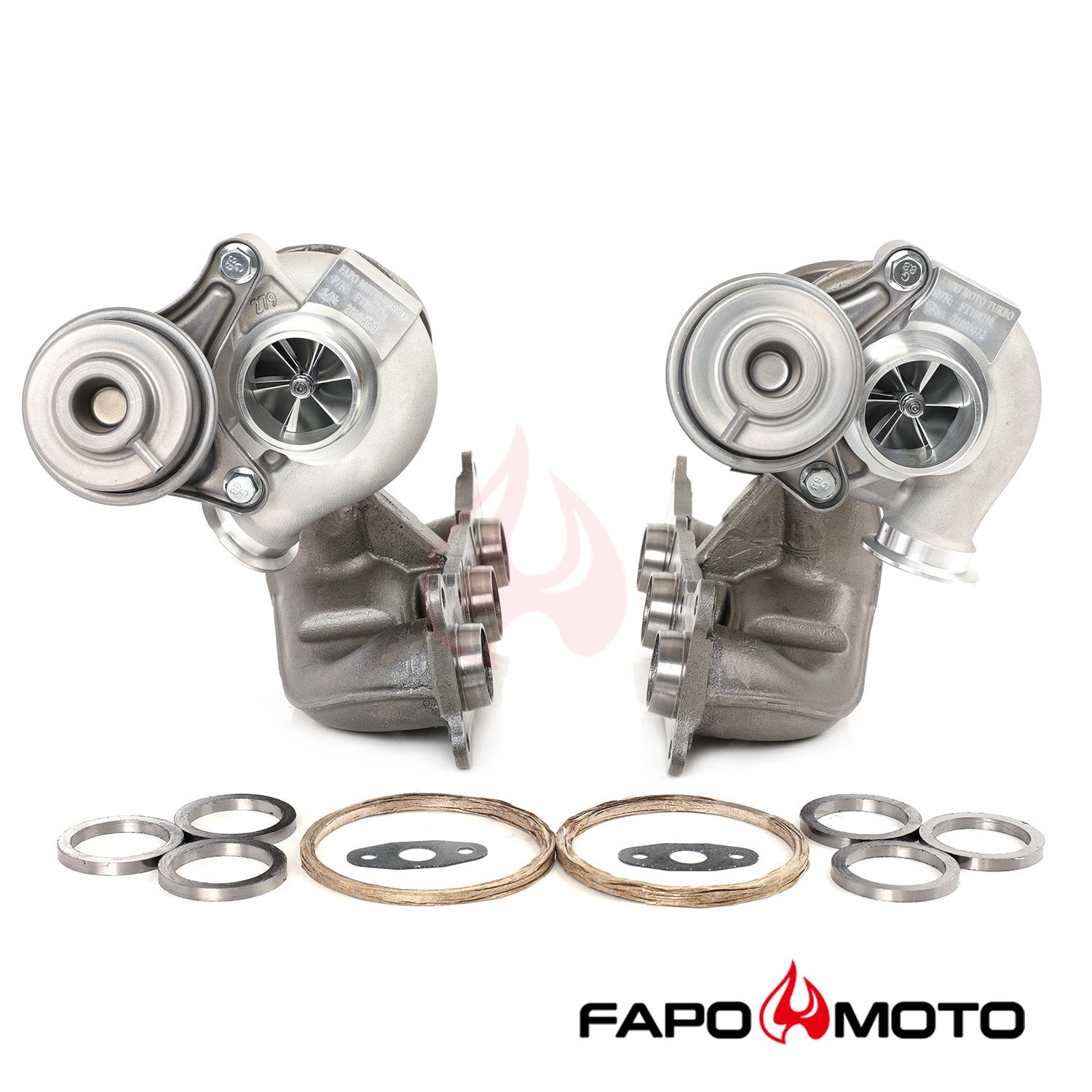

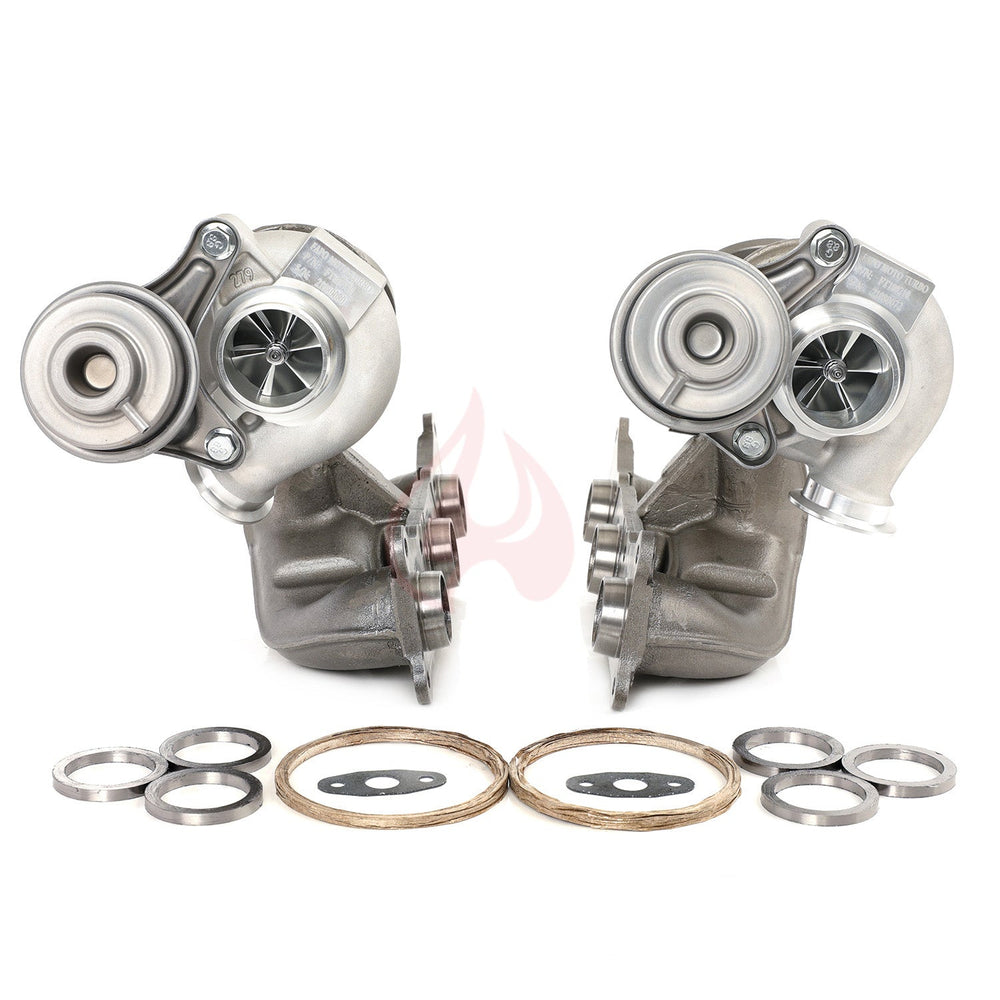

- The accessories shown in the photos are included
- 1-year warranty for any manufacturing defect
Technical Specifications:

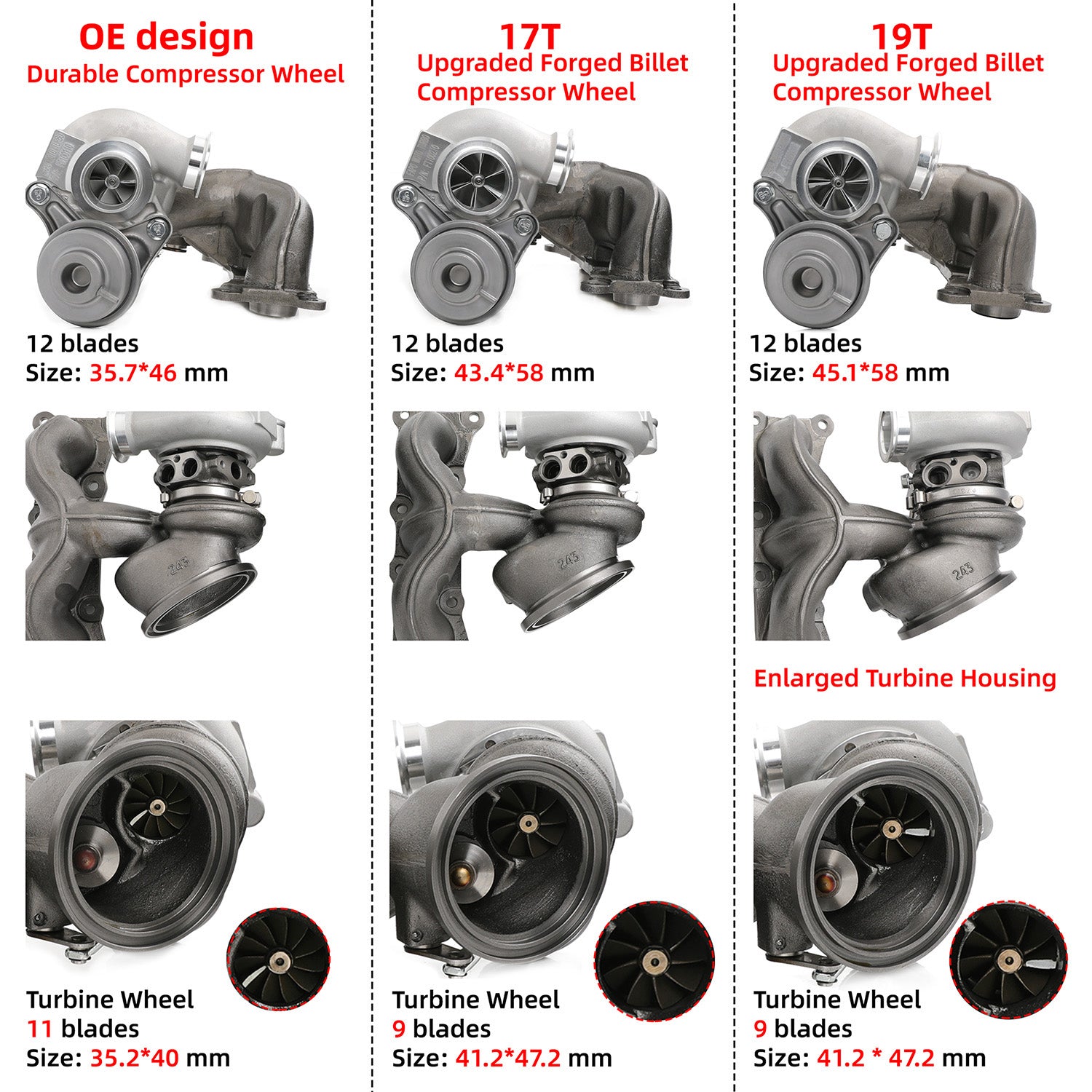

- Upgraded Forged Billet Compressor Wheel: 12 blades (6+6), size: 45.1 x 58 mm
- Turbine Wheel: 9 blades, size: 41.2 x 47.2 mm
We also sell OE design and 17T N54 Twin Turbos. Contact us if interested.
Turbo Part Numbers:
- 49131-07000, 49131-07001, 49131-07006, 49131-07007, 49131-07010
- 49131-07011, 49131-07015, 49131-07016, 49131-07107, 49131-07018
- 49131-07019, 49131-07030, 49131-07031, 49131-07040, 49131-07041
- 49131-07065, 49131-07066, 49131-07067, 49131-07068, 49131-07069
- 49131-07075, 49131-07076, 49131-07077, 49131-07078, 49131-07079
- 49131-07161, 49131-07170, 49131-07180, 49131-07205, 49131-07206
O.E.M Numbers:
- 11654564711, 11654564710, 11657563685, 11657563686, 11657583863
- 11657583864, 11657593015, 11657593016, 11657649289, 11657649290
- 4564710, 4564711, 7583863, 7583864, 7593015, 7593016, 7563685, 7563686
- 7649289, 7649290
Compatibility
| Year | Make | Model |
|---|---|---|
| 2008-2010 | BMW | 135i (E82/E88) N54B30 3.0L Turbocharged |
| 2008-2010 | BMW | 535i / 535ix (E60/E61) N54B30 3.0L Turbocharged |
| 2009-2016 | BMW | Z4 sDrive35i / sDrive35is (E89) N54B30 3.0L Turbocharged |
| 2008-2010 | BMW | X6 xDrive35i (F71) N54B30 3.0L Turbocharged |
| 2010-2012 | BMW | 740i / 740Li (F01/F02) N54B30 3.0L Turbocharged |
Specs
Brand
FAPO
Forged Billet Compressor Wheel
12(6+6) blades, Size: 45.1*58 mm
Turbine Wheel
9 blades, Size: 41.2*47.2 mm
Warranty
1 Year
